PowerPower SuppliesPower Supplies For Access ControlAltronix - Access Power Controller 8 Channel Ptc 12/24vdc 4 AmpAltronix - Access Power Controller 8 Channel PTC 12/24VDC 4 Amp
SKU: EFLOW4NA8DMFR SKU: EFLOW4NA8DBy: Altronix
Share
Share
Product images are for illustration purposes only and may not reflect the actual item.

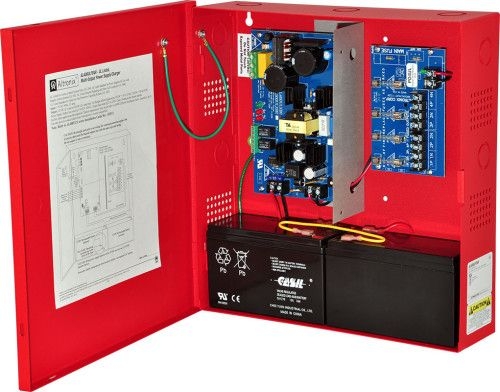

Product DescriptioneFlow4NA8D distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC PTC protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. Specifications:
