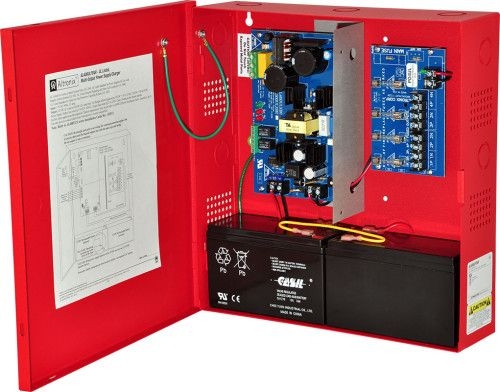

Altronix - Power Supply 8CH 12/24VDC 4A W/ACM8 & Enclosure

Name: Altronix - Power Supply 8CH 12/24VDC 4A W/ACM8 & Enclosure AL400ULACMCB
Brand: Altronix
SKU: AL400ULACMCB
Price: 333.96 USD
Availability: InStock

SKU: AL400ULACMCBMFR SKU: AL400ULACMCBBy: Altronix

Altronix - Power Supply 8CH 12/24VDC 4A W/ACM8 & Enclosure

Essential Accessories

Altronix - 4ft. 3-wire Line Cord

MFR SKU: LC2

SKU: LC2

$6.21

Product DescriptionAltronix AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A @ 12VDC or 3A @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both FailSafe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Guides & Spec Sheets
