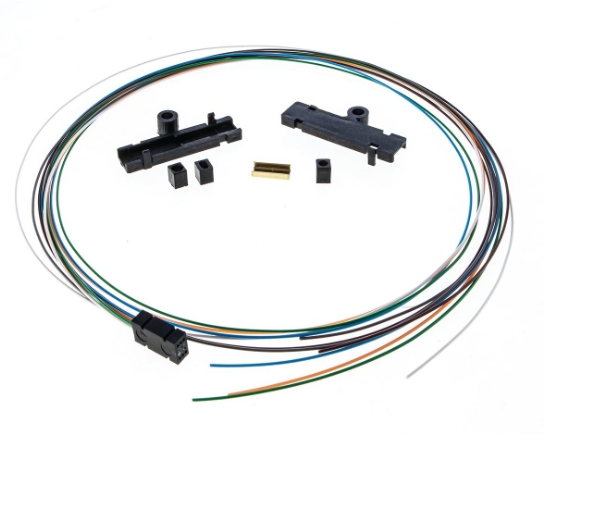

Cleerline Fiber - 6 Fiber Buffer Tube/Ribbon Fan-Out Kit 25" Tubing
SKU: FAN0625M250MFR SKU: FAN0625M250By: Cleerline Fiber
Share
Share
Product images are for illustration purposes only and may not reflect the actual item.
Product DescriptionCleerline SSFT Fan Out Kits enable fast and easy build-up of 250µm fibers found in today's common micro distribution style cables. The kit's 900µm color-coded buffer tubes allow the cable's overall jacket to be removed and each 250µm fiber to simply be threaded through the corresponding colored tube. To complete, the assembly snaps together and requires no additional tooling or epoxy. Using a fan out kit provides additional protection to 250µm fibers that might be installed in a pass-through plate or equipment rack, or other exposed location. Loose tube fanout kits are available in 4, 6, 12, and 24 strand configurations and in two different lengths. These kits work with all 250µm type single mode or multimode cabling and industry standard connectors. FEATURES AND BENEFITS 4, 6, 12, and 24 strand configurations Two different lengths available Tubing colored per TIA/EIA-569-B standard Provides protection to any installation Easy to assemble, simple snap housing SPECIFICATIONS TIA/EIA-568-B compliant ABS Plastic Hytrel furcation tubing 900µm outer diameter APPLICATIONS Premise/Enterprise Networks Backbone, Horizontal, and FTTx applications Data Center, Enterprise, Broadcast, Industrial Defense, Healthcare, and Telco/MSO Field repair/replacement LAN/WAN connections
Guides & Spec Sheets
SSF Fan Out Specification Sheet.pdfBy Cleerline Fiber
