NetworkingOptical TransceiversCleerline Fiber - 10g Sfp+ Transceiver Sm 10gbase-lr, 1310nm, 20km Max Reach

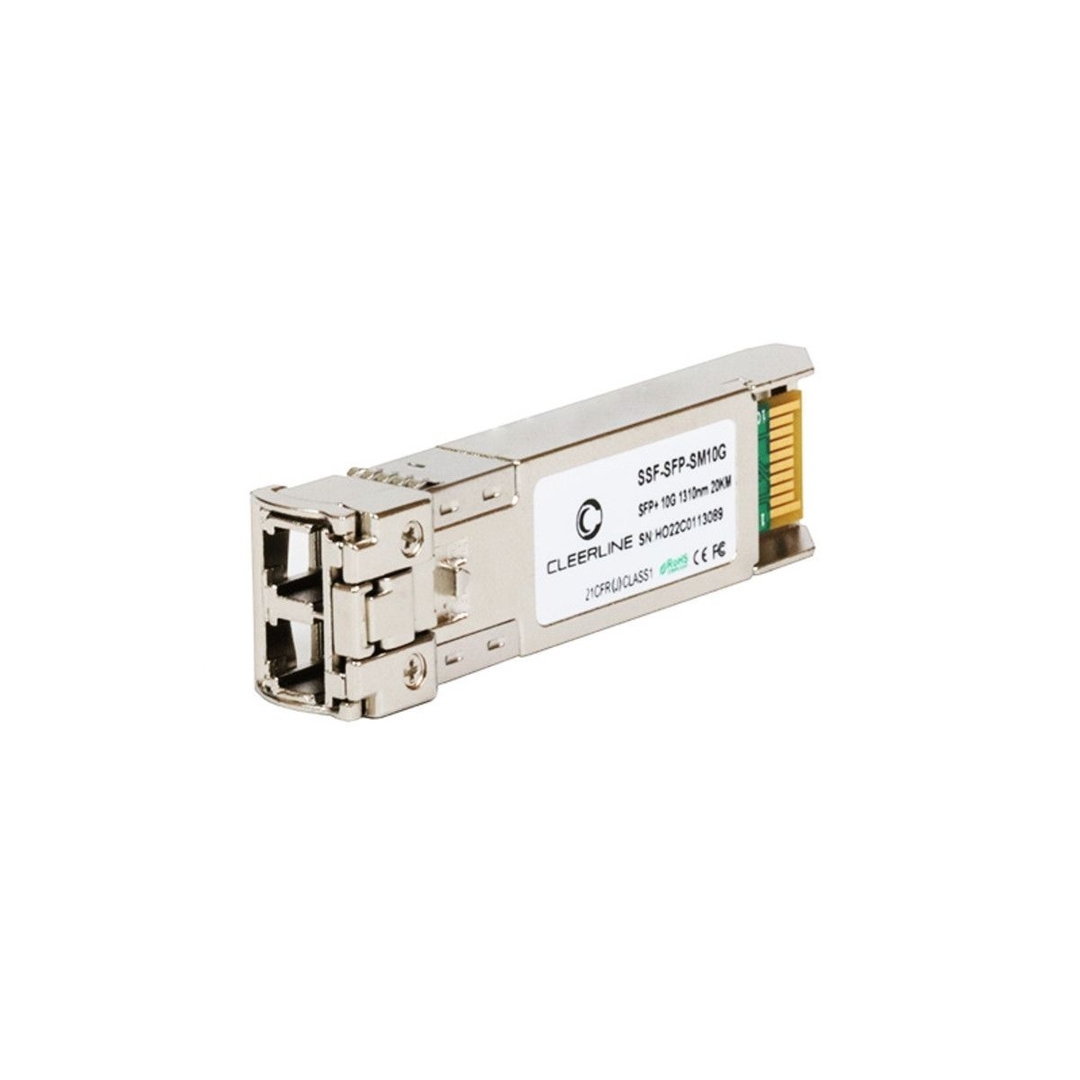

NetworkingOptical TransceiversCleerline Fiber - 10g Sfp+ Transceiver Sm 10gbase-lr, 1310nm, 20km Max ReachCleerline Fiber - 10G SFP+ transceiver SM 10GBase-LR, 1310nm, 20Km max reach
SKU: SSF-SFP-SM10GMFR SKU: SSF-SFP-SM10GBy: Cleerline Fiber
Share
Share
In stock soon
Expected by May 12, 2026.
Retail price:
$52.17
Product DescriptionSSF-SFP-SM10G 10G SM SFP+ Transceiver This 1310 nm DFB 10 Gigabit SFP+ transceiver is designed for long range transmission (up to 20km) over single mode fibers. It uses a Fabry-Perot laser transmitter at 1310nm. Line rate of transceiver is 10.3125Gbps. This SFP accepts two LC connectors. The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector. The transceivers follow the industry standards of the SFP Multi-Source Agreement (MSA) and SFF-8431, making them directly interchangeable with any networking device following industry standards. Note: not compatible with HP devices. Features
SIMILAR PRODUCTS

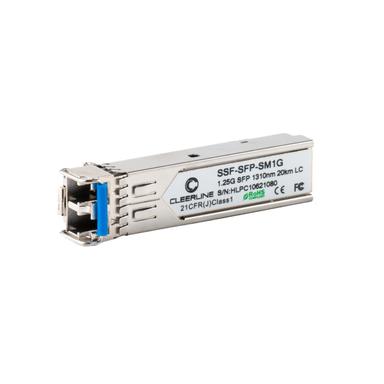

Cleerline Fiber - 1.25G SFP transceiver SM 1000Base-LX, 1310nm, 20Km max reach, w/DDM
