Hikvision - Camera Turret Ip Colorvu 8mp 2.8mm Ir W/audio Black

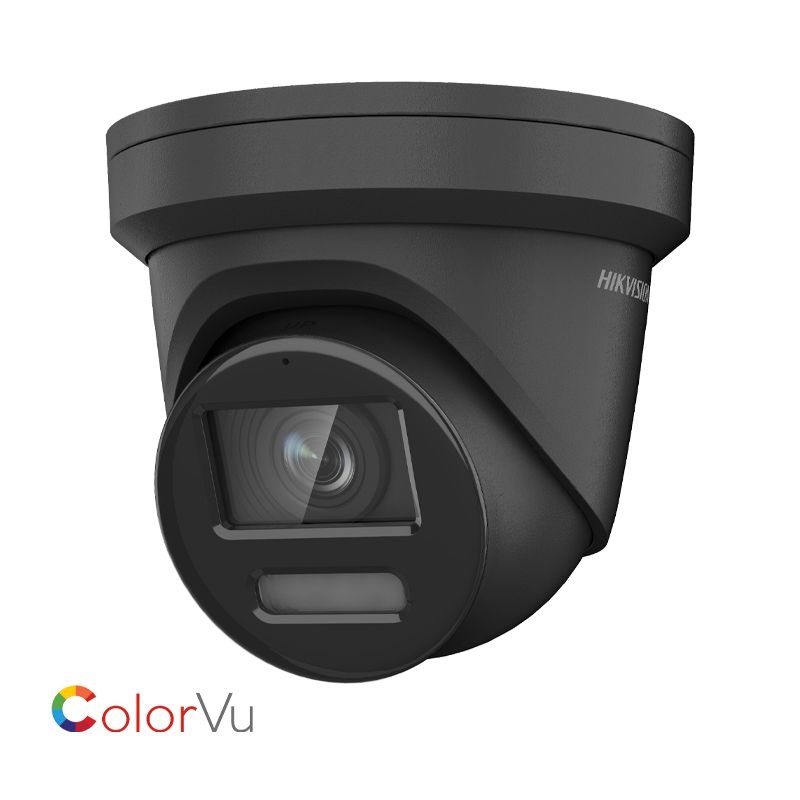

HIKVISION - Camera Turret IP ColorVu 8MP 2.8MM IR W/audio BLACK

SKU: DS-2CD2387G2LUB

MFR SKU: DS-2CD2387G2-LU 2.8MM BLACK

By: Hikvision

HIKVISION - Camera Turret IP ColorVu 8MP 2.8MM IR W/audio BLACK

KEY FEATURES

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Built-in microphone for real-time audio security
24/7 colorful imaging
Network Storage - Together with high-end Hikvision memory card, memory card encryption and health detection are supported

+Quote

Customers also bought:

HTH280ZJ-DM21RBHunt CCTV - BACK BOX FOR HNC324-VDZ AND DS-2CD2385 344XD-LURB

PC140BHIKVISION - Pendant Cap For Hikvision Dome Cameras BLACK

Specifications

ip	Ipv4, Ipv6
poe	Yes (802.3Af)
body	Turret
lens	2.8Mm Fixed Focal
type	Colorvu
audio	Audio Compression - G.711Ulaw/G.711Alaw/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 To 192 Kbps (Mp2L2)/8 To 320 Kbps (Mp3)/16 To 64 Kbps (Aac)
color	Black
video	Main-Stream - 50 Hz: 25 Fps (3840 X 2160, 3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), 60 Hz: 24 Fps (3840 X 2160), 30 Fps (3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (640 X 480, 640 X 360), 60 Hz: 30 Fps
client	Ivms-4200, Hik-Connect, Hik-Central
series	Pro
coverage	Detect - 96 M, Observe - 38 M, Recognize - 19 M, Identify - 9 M
material	Metal
security	Password Protection, Complicated Password, Https Encryption, Ip Address Filter, Security Audit Log, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface
analytics	Motion Detection, People Detection, Vehicle Detection, Camera Sabotage/Tampering, Virtual-Line Crossing Detection, Intrusion Detection, Entering/Exiting, Scene Change Detection, Face Detection
iris type	Fixed
protocols	Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X, Qos, Ipv4, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Snmp
lens mount	M16
protection	Ip67 (Iec 60529-2013)
resolution	8 Mp (3840 X 2160)
users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User
hdmi output	Yes
illuminator	Up To 30 M Ir White Supplement Light
web browser	Plug-In Required Live View - Ie 10/Ie 11, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+, Local Service - Chrome 57.0+/Firefox 52.0+
face capture	Supported
focal length	2.8Mm
image sensor	1/1.2 In Progressive Scan Cmos
power supply	12 Vdc, 0.46 A
privacy mask	8 Programmable Polygon, Mask Color Or Mosaic Configurable
sd card slot	Built-In Memory Card Slot, Support Micro Sd/Micro Sdhc/Micro Sdxc Card, Up To 256 Gb
camera weight	1.9 Lb
day and night	24/7 Color Imaging
shutter speed	1/30 - 1/100000 Sec

video bitrate	32 Kbps - 16 Mbps
white balance	Yes
certifications	Fcc (47 Cfr Part 15, Subpart B), Ce-Emc (En 55032: 2015, En 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011+A1: 2014), Rcm (As/Nzs Cispr 32: 2015), Ic (Ices-003: Issue 7), Kc (Kn32: 2015, Kn35: 2015), Ul (Ul 62368-1)
depth of field	3.1 M To Infinity
image settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor
ai capabilities	Basic Event - Motion Detection (Support Alarm Triggering By Specified Target Types (Human And Vehicle), Video Tampering Alarm, Exception (Network Disconnected, Ip Address Conflict, Illegal Login, Hdd Full, Hdd Error), Smart Event - Line Crossing Detection
network storage	Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)
angle adjustment	0-360 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate
bit rate control	Cbr/Vbr
general function	Anti-Flicker, Heartbeat, Mirror, Password Reset Via E-Mail, Pixel Counter
webpage language	33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	5.4 X 4.7 In
image enhancement	Blc, Hlc, 3D Dnr
power consumption	Maximum 5.5 W, Poe: Maximum 6.5 W, 0.18 A To 0.11 A (802.3Af, 36 V To 57 V)
ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive
wide dynamic range	130 Db
built in microphone	Yes
day and night switch	Day, Night, Auto, Schedule
nightvision color bw	Color - 0.0005 Lux @ (F1.0, Agc On)
angular field of view	(H): 102 Deg, (V): 52 Deg, (O): 124 Deg
maximum aperture ratio	F1.0
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265/H.264/H.264+/H.265+, Sub-Stream - H.265/H.264/Mjpeg, Third Stream - H.265/H.264
image parameters switch	Yes
region of interest roi	1 Fixed Region For Main-Stream And Sub-Stream
environment noise filtering	Supported
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Isapi, Sdk, Isup
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)

Guides & Spec Sheets

Datasheet_V5.5.115_20210709.pdfBy Hikvision
