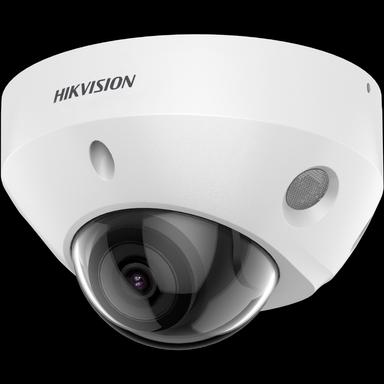

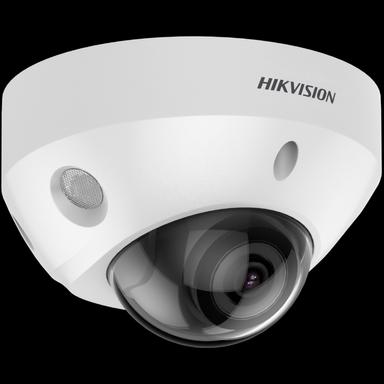

HIKVISION - Camera IP Compact Dome 8MP 2.8MM IR Audio

SKU: DS-2CD2583G2-IS

MFR SKU: DS-2CD2583G2-IS 2.8mm

By: Hikvision

HIKVISION - Camera IP Compact Dome 8MP 2.8MM IR Audio

KEY FEATURES

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK08)
Audio and alarm interface available
Audio - 1 Input (Line In)/1 Output (Line Out), Two-Core Terminal Block, Max Input Amplitude: 3.3 Vpp, Input Impedance: 4.7 KΩ/Output Impedance: 100 Ω, Interface Type: Non-Equilibrium

Price

$224.39

+Quote

Customers also bought:

DS-2CD2387G2LU2

HIKVISION - Camera Turret IP ColorVu 8MP 2.8MM IR W/audio

$308.53

Essential Accessories

HIKVISION - Wall Mount Bracket For Hikvision short

$24.39

HIKVISION - Wall Mount Bracket For Hikvision Long

$34.15

HIKVISION - Pendant Cap For Hikvision Compact Dome C

$14.14

LIONBEAM - Outlet Box 1-1/4 For Hikvision Mini Dome

$14.29

HIKVISION - Wire Box For Hikvision Compact Dome Camera

$21.95

Specifications

	ip	Ipv6		poe	Yes (802.3Af, Class 3)		body	Mini Dome		lens	2.8Mm Fixed Focal		type	Acusense		alarm	(1) Input, (1) Output (Max (1) 2 Vdc, 20 Ma)		audio	Audio Compression - G.711Ulaw/G.711Alaw/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac-Lc, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (Mp2L2)/8-320 Kbps (Mp3)/16-64 Kbps (Aac-Lc)		color	White		video	Main-Stream - 50 Hz: 20 Fps (3840 X 2160), 25 Fps (3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), 60 Hz: 20 Fps (3840 X 2160), 30 Fps (3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (1280 X 720, 640 X 480, 640 X 360)		client	Ivms-4200, Hik-Connect, Hik-Central		series	Pro		coverage	Detect - 88 M, Observe - 35 M, Recognize - 18 M, Identify - 9 M		material	Aluminum Base, Plastic Cover		security	Password Protection, Complicated Password, Https Encryption, Ip Address Filter, Security Audit Log, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface		analytics	Camera Sabotage/Tampering, Face Detection, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection		iris type	Fixed		protocols	Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Websocket, Websocket'S		reset key	Yes		lens mount	M12		protection	Ip67 (Iec 60529-2013), Ik10 (Iec 62262: 2002)		resolution	8 Mp (3840 X 2160)		users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User		illuminator	Up To 30 M Ir Supplement Light		web browser	Plug-In Required Live View - Ie 10/Ie 11, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+, Local Service - Chrome 57.0+/Firefox 52.0+		focal length	2.8Mm		image sensor	1/2.8 In Progressive Scan Cmos		power supply	12 Vdc +/-25%, 0.54 A, 5.5 Mm Dia Coaxial Power Plug, Reverse Polarity Protection		sd card slot	Built-In Memory Card Slot, Support Micro Sd Card, Up To 512 Gb		camera weight	0.9 Lb		day and night	Ir Cut Filter		ir wavelength	850 Nm		shutter speed	1/30 - 1/100000 Sec

	video bitrate	32 Kbps - 16 Mbps		certifications	Fcc (47 Cfr Part 15, Subpart B), Ce-Emc (En 55032: 2015, En 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011+A1: 2014), Rcm (As/Nzs Cispr 32: 2015), Ic (Ices-003: Issue 7), Kc (Kn32: 2015, Kn35: 2015), Ul (Ul 62368-1)		depth of field	1.4 M To Infinity		image settings	Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Adjustable By Client Software Or Web Browser		outdoor indoor	Outdoor		ai capabilities	Basic Event - Motion Detection (Human And Vehicle Targets Classification), Video Tampering Alarm, Exception, Smart Event - Line Crossing Detection, Intrusion Detection, Face Detection, Linkage - Upload To Ftp/Memory Card/Nas, Notify Surveillance Center		network storage	Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)		angle adjustment	-30 To 30 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate		bit rate control	Cbr/Vbr		general function	Anti-Flicker, Heartbeat, Mirror, Password Reset Via E-Mail, Pixel Counter		webpage language	33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean		camera dimensions	4.5 X 2.9 In		image enhancement	Blc, Hlc, 3D Dnr		power consumption	Maximum 6.5 W, Poe: Maximum 8 W, 0.22 A To 0.14 A (36 V To 57 V)		ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive		wide dynamic range	120 Db		built in microphone	Yes		day and night switch	Day, Night, Auto, Schedule		nightvision color bw	Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir		angular field of view	(H): 106.4 Deg, (V): 58.4 Deg, (O): 124.8 Deg		signal to noise ratio	>52 Db		maximum aperture ratio	F1.6		simultaneous live view	Up To 6 Channels		video compression type	Main-Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg, Third Stream - H.265/H.264 (Third Stream Is Supported Under Certain Settings)		image parameters switch	Yes		region of interest roi	1 Fixed Region For Main-Stream And Sub-Stream		environment noise filtering	Supported		scalable video coding svc	H.264 And H.265 Encoding		environmental operating humidity	95% Or Less Rh (Non-Condensing)		application programming interface	Open Network Video Interface (Profile S, Profile G), Isapi, Sdk		environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)

Guides & Spec Sheets

DS-2CD2583G2-IS.pdf
