Hikvision® Ds-2de7a432iw-a(5.9-188.8mm) 5.9-188.8 Mm 7 In 4 Mp (2560 X 1440) 32x Powered By Darkfighter Ir Dome Ip Camera

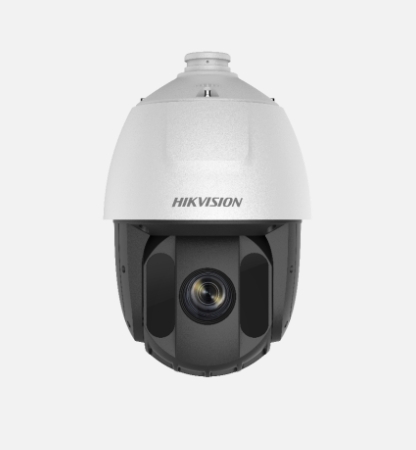

HIKVISION® DS-2DE7A432IW-A(5.9-188.8mm) 5.9-188.8 mm 7 in 4 MP (2560 x 1440) 32X Powered by DarkFighter IR Dome IP Camera

SKU: DS-2DE7A432IW-A

MFR SKU: ND7A432IW

By: Hikvision

https://ecommerce-api.tristatelvs.com/assets/unknown_2405__209__preview.jpg

KEY FEATURES

1/1.8 in progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Retail Price

$863.41

+Quote

Specifications

	ip	Ipv4, Ipv6		poe	Hi-Poe		body	Dome		lens	5.9-188.8Mm Moto Varifocal		zoom	32X Optical, 16X Digital		alarm	(2) Input, (1) Output		audio	Audio Compression - G.711Alaw/G.711Ulaw/G.722.1/G.726/Mp2L2/Aac/Pcm, Audio Bit Rate - 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (Mp2L2)/16-64 Kbps (Aac), Audio Sampling Rate - 8 Khz/16 Khz/32 Khz/48 Khz		color	White		focus	Semi-Auto, Manual, Auto		video	Main-Stream - 50 Hz: 25 Fps (2560 X 1440, 1920 X 1080, 1280 X 960, 1280 X 720), 60 Hz: 30 Fps (2560 X 1440, 1920 X 1080, 1280 X 960, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (704 X 576, 640 X 480, 352 X 288), 60 Hz: 30 Fps (704 X 480, 640 X 480, 352 X 240)		client	Ivms-4200, Hik-Central Pro, Hik-Connect		series	Pro		coverage	Detect - 2046.9 M, Observe - 812.3 M, Recognize - 409.4 M, Identify - 204.7 M		material	Adc12 Aluminum Alloy		security	Password Protection, Complicated Password, Https Encryption, 802.1X Authentication (Eap-Tls, Eap-Leap, Eap-Md5), Watermark, Ip Address Filter, Basic And Digest Authentication For Http/Https, Rtp/Rtsp Over Https		analytics	Motion Detection, Camera Sabotage/Tampering, Virtual-Line Crossing Detection, Intrusion Detection, Entering/Exiting, Abandoned Object, Object Removal, Audio Detection, Face Detection		protocols	Ipv4/Ipv6, Http, Https, 802.1X, Qos, Ftp, Smtp, Upnp, Snmp, Dns, Ddns, Ntp, Rtsp, Rtcp, Rtp, Tcp/Ip, Udp, Igmp, Icmp, Dhcp, Pppoe, Bonjour		ptz speed	Pan - Configurable From 0.1 To 160 Deg/S, Preset Speed: 240 Deg/S, Tilt - Configurable From 0.1 To 120 Deg/S, Preset Speed: 200 Deg/S		protection	Ip67 (Iec 60529-2013), Ik10 (Iec 62262-2002), Tvs 6000V Lightning, Surge And Voltage Transient		resolution	4 Mp (2560 X 1440)		users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User		zoom speed	Approx 4.8 Sec		illuminator	Up To 200 M Ir Supplement Light		park action	Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Dome Reboot, Dome Adjust, Aux Output		web browser	Ie11/Chrome 57+/Firefox 52+/Safari 11+		face capture	Supported		focal length	5.9-188.8Mm		image sensor	1/1.8 In Progressive Scan Cmos		pattern scan	4 Pattern Scans		power supply	24 Vac		privacy mask	24 Programmable Polygon		sd card slot	Built-In Memory Card Slot, Support Micro Sd/Sdhc/Sdxc Card, Up To 256 Gb		shutter mode	Slow		camera weight	11.03 Lb		day and night	Ir Cut Filter		preset patrol	8 Patrols, Up To 32 Presets For Each Patrol

	shutter speed	1/1 - 1/30000 Sec		video bitrate	32 Kbps - 16384 Kbps		white balance	Yes		3d positioning	Yes		certifications	Fcc: 47 Cfr Part 15, Subpart B, Ce-Emc: En 55032:2015, En 61000-3-2:2019, En 61000-3-3:2013, En 50130-4:2011 + A1:2014, Rcm: As/Nzs Cispr 32:2015, Ic Voc (Ices-003:Issue 6, 2019), Kc: Kn 32:2015, Kn 35:2015), Ul: Ul 62368-1)		image settings	Saturation, Brightness, Contrast, Sharpness, Gain And White Balance Are Adjustable By Client Software Or Web Browser		outdoor indoor	Outdoor		ai capabilities	Basic Event - Motion Detection, Video Tampering Alarm, Exception, Alarm Input And Output, Smart Event - Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection		network storage	Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)		preset freezing	Yes		built in speaker	Yes		power off memory	Yes		proportional pan	Yes		camera dimensions	8.66 X 13.91 In		image enhancement	Blc, Hlc, 3D Dnr		number of presets	300		power consumption	Maximum 42 W (Including Maximum 18 W For Ir And Maximum 10 W For Heater)		ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive		ptz movement range	Pan: 360 Deg, Tilt: -15 To 90 Deg (Auto Flip)		ptz status display	Yes		wide dynamic range	120 Db		image stabilization	Eis		day and night switch	Day, Night, Auto, Schedule		nightvision color bw	Color - 0.005 Lux @ (F1.5, Agc On), B/W - 0.001 Lux @ (F1.5, Agc On), 0 Lux With Ir		angular field of view	(H): 50.8 To 2.6 Deg, (V): 29.4 To 1.5 Deg, (O): 57.4 To 3 Deg		signal to noise ratio	≥ 52 Db		maximum aperture ratio	F1.5		simultaneous live view	Up To 20 Channels		video compression type	Main-Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg, Third-Stream - H.265/H.264/Mjpeg		region of interest roi	8 Fixed Region For Each-Stream		environment noise filtering	Supported		scalable video coding svc	H.264 And H.265 Encoding		environmental operating humidity	90% Or Less Rh (Non-Condensing)		application programming interface	Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), Isapi, Sdk, Isup		environmental operating temperature	-30 To 65 Deg C (-22 To 149 Deg F)

Guides & Spec Sheets

DS-2DE7A432IW-AEBT5.pdf

By Hikvision

Have Questions?

Get help from our experts

Our knowledgeable team is ready to answer any questions you may have and offer professional solutions tailored to your specific requirements.
