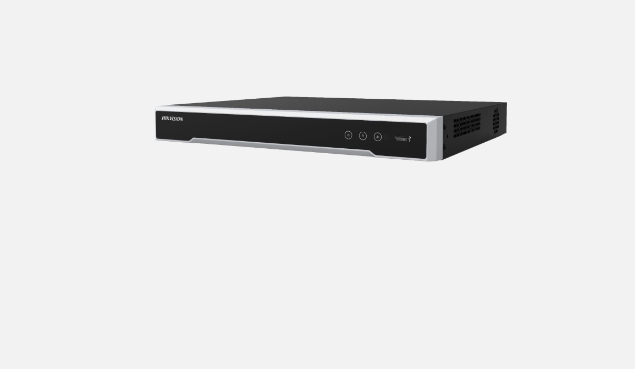

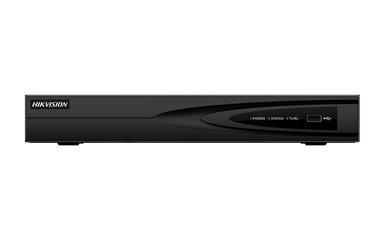

HIKVISION | NVR 16 Channel W/16 PoE 1U 2 SATA 4K 256Mbps in/256Mbps Out With AccuSense Analytics

KEY FEATURES

H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP camera inputs
Up to 16-ch@4MP decoding capacity
Up to 256 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected
H.265+ compression effectively reduces the storage space by up to 75%
Dual-stream recording saves bandwidth
Adopt stream over TLS encryption technology which provides more secure stream transmission service
Support double verification for playback and downloading
Provide independent HDMI and VGA outputs
HDMI video output at up to 8K resolution
Up to 2 SATA interfaces for HDD connection

Retail Price

+Quote

Essential Accessories

Western Digital | Purple_R1

$80.00

Western Digital | Hard Drive 4TB SATA 64MB Purple

$105.50

Western Digital | Purple

$162.50

Western Digital | 8Tb Purple HDD sata

$230.00

Western Digital | Purple_R3

$287.50

Specifications

	series	Ultra		capacity	Up To 16 Tb For Each Disk		stream type	Video, Video & Audio		audio output	1-Channel, Rca (Linear, 1 Kω)		poe interface	(16) Rj-45 10/100 Mbps Self-Adaptive Ethernet Interface		two way audio	1-Channel, Rca (2.0 Vp-P, 1 Kω, Using The Audio Input)		ip video input	16-Channel Upto 32 Mp Resolution		product weight	2.2 Lb		decoding format	H.265+/H.265/H.264+/H.264		network protocol	Tcp/Ip, Dhcp, Ipv4, Ipv6, Dns, Ddns, Ntp, Rtsp, Sadp, Smtp, Snmp, Nfs, Iscsi, Isup, Upnp™, Http, Https, Onvif(Version 2.2), Otap		audio compression	G.711Ulaw/G.711Alaw/G.722/G.726/Aac/Mp2L2

	network interface	(1) Rj-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface		power consumption	</=200 W		pre installed hdd	No		remote connection	128		auxiliary interface	2 Sata, 1 X Usb 3.0 Rear, 1 X Usb 2.0 Front, 4/1 Alarm In/Out		decoding capability	2-Channel@32 Mp (30 Fps)+2-Channel @8Mp (30Fps)/10-Channel @8 Mp (30 Fps)/20-Channel @4 Mp (30 Fps)/40-Channel@1080P (30 Fps)		standards approvals	Ieee 802.3 Af/At		recording resolution	32 Mp/24 Mp/12 Mp/8 Mp/6 Mp/5 Mp/4 Mp/3 Mp/1080P/Uxga/720P/Vga /4Cif/Dcif/ 2Cif/Cif/Qcif		synchronous playback	16-Channels		camera access protocol	Onvif (Version 2.5), Rtsp
