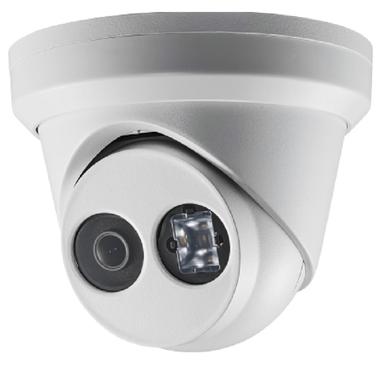

Hunt Cctv - Camera Ip Turret 4mp 2.8mm Exir 150ft H.265

Hunt CCTV - Camera IP Turret 4MP 2.8MM EXIR 150FT H.265

SKU: HNC324G2-XD/2.8

MFR SKU: HNC324G2-XD

By: Hunt CCTV

Hunt CCTV - Camera IP Turret 4MP 2.8MM EXIR 150FT H.265

KEY FEATURES

4 MP (2688 x 1520) resolution
Full HD 4MP real-time video
True WDR & 3D DNR & BLC
EXIR illuminator up to 100 ft

+Quote

Customers also bought:

HTH-285ZJ-MHunt CCTV - Outlet Box 1-1/4" For Hikvision Turret & FD4

Specifications

poe	Yes (802.3Af)
body	Turret
lens	2.8Mm
color	White
video	60 Hz - 30 Fps (2688 X 1520, 1920 X 1080, 1280 X 720)
protocols	Tcp/Ip, Http, Dhcp, Dns, Ddns, Rtp, Rtsp, Pppoe, Smtp, Ntp, Snmp, Https, Ftp, 802.1X, Qos
protection	Ip67
resolution	4 Mp (2688 X 1520)
illuminator	Up To 100 Ft Ir
focal length	2.8 Mm
image sensor	1/3 In Progressive Scan Cmos
power supply	12 Vdc +/-25%
camera weight	1.3 Lb
mounting type	Wall Mount - Hth-273Zj-130B-Trl, Hth-273Zj-130-Trl, Corner And Pole - C -Hth-276Zj, P -Hth-275Zj, Ceiling Mount - C -Hth-271Zj-130-Trl
shutter speed	1/30 To 1/100000 Sec
video bitrate	32 Kbps - 8 Mbps
image settings	Saturation, Brightness, Contrast, Sharpness Are Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor

ai capabilities	Motion Detection, Tampering Alarm
network storage	Nas
angle adjustment	0-360 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate
general function	User Authentication, Watermark
camera dimensions	5.01 X 3.78 In
image enhancement	Blc, True Wdr & 3D Dnr
power consumption	6 W Maximum
ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive
wide dynamic range	True Wdr 120 Db
nightvision color bw	Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir On
angular field of view	(H): 103 Deg, (V): 55 Deg, (O): 122 Deg
maximum aperture ratio	F1.6
video compression type	Main Stream - H.265/H.264/H.264+/H.265+, Sub-Stream - H.265/H.264/Mjpeg
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface, Psia, Cgi
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)

Guides & Spec Sheets

huntcctv.com-HNC324G2-XD - Hunt Electronic.pdfBy Hunt CCTV
