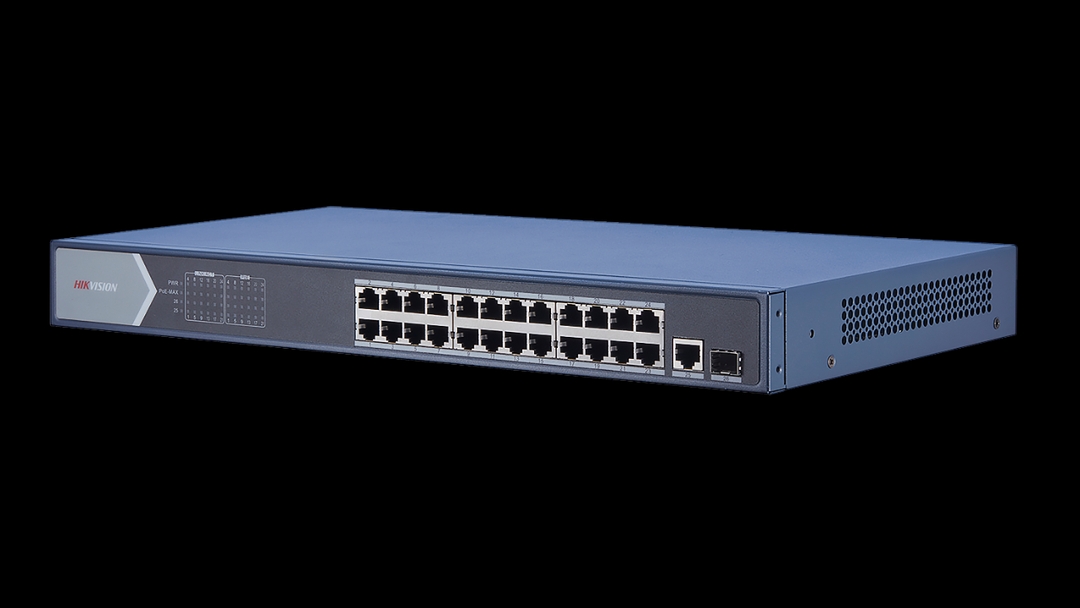

HIKVISION® DS-3E0526P-E 24 x Gigabit PoE Port Pro Unmanaged POE Switch

KEY FEATURES

Layer 2 network switch designed for video data transmission
24 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
IEEE 802.3 af & at high PoE power supply
Store-and-forward switching
Safe and reliable using 6 KV high surge protection
Plug and play ensures simplicity and convenience

Retail Price

+Quote

Specifications

	type	Unmanaged		series	Pro		dimensions	44 Mm H X 440 Mm W X 220.8 Mm D		poe standard	Ieee 802.3Af,Ieee 802.3At		power supply	100-240 Vac, 50/60 Hz, Max.6.5 A		poe power pin	1/2(+), 3/6(-) End-Span		internal cache	4.1 Mbits		product weight	6.35 Lb		shell material	Metal		humidity rating	5-95%		number of ports	24 X Gigabit Poe Port;1 X Gigabit Rj45 Port, 1 X Gigabit Fiber Optical Port

	poe power budget	370 W		surge protection	6 Kv		installation mode	Desk/Wall		mac address table	8 K		power consumption	400 W Maximum, 30 W Idle		maximum port power	30 W		switching capacity	52 Gbps		temperature rating	-10 To 55 Deg C, -40 To 85 Deg C Storage		standards approvals	Fcc (47 Cfr Part 15, Subpart B),Ce-Emc (En 55032: 2015+A11: 2020, En Iec 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011+A1: 2014, En 55035: 2017+A11: 2020),Ic (Ices-003: Issue 7:2020),Rcm (As/Nzs Cispr 32: 2015), Ul (Ul 60950-1)		packet forwarding rate	38.69 Mpps

Guides & Spec Sheets

Datasheet-of-DS-3E0526P-E-24-Port-Gigabit-Unmanaged-PoE-Switch.pdf

By HIKVISION
