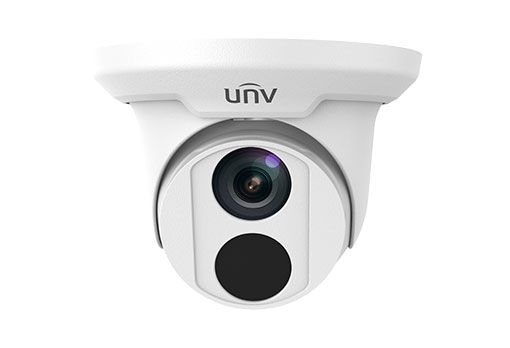

UNV - IPC3618SR3-ADF28KM-G Camera Turret 8MP IR 2.8MM

SKU: 3618SR3ADF28KM

MFR SKU: IPC3618SR3-ADF28KM-G

By: UNV

UNV - IPC3618SR3-ADF28KM-G Camera Turret 8MP IR 2.8MM

KEY FEATURES

High quality image with 8MP, 1/2.7 in CMOS sensor
8MP (3840*2160) @ 20 fps; 5MP (3072*1728) @ 30/25 fps; 4MP (2560*1440) @ 30/25 fps; 2MP (1920*1080) @ 30/25 fps
Ultra 265, H.265, H.264, MJPEG
Light Hunter technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis

+Quote

Customers also bought:

TR-JB03-G-INUNV - Wire Box For UNV Fixed Dome/Turret Camera

Essential Accessories

UNV - Wire Box For UNV Fixed Dome/Turret Camera

SKU: TR-JB03-G-IN

MFR SKU: TR-JB03-G-IN

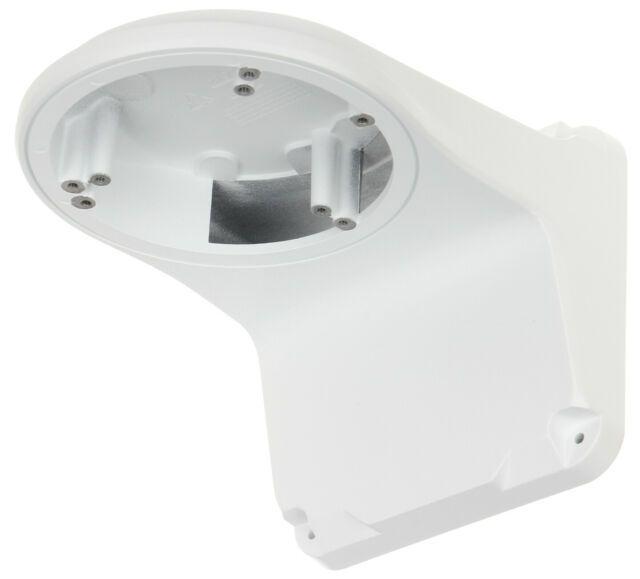

UNV - Wallmount Bracket For UNV Fixed Dome

SKU: TR-WM03-B-IN

MFR SKU: TR-WM03-B-IN

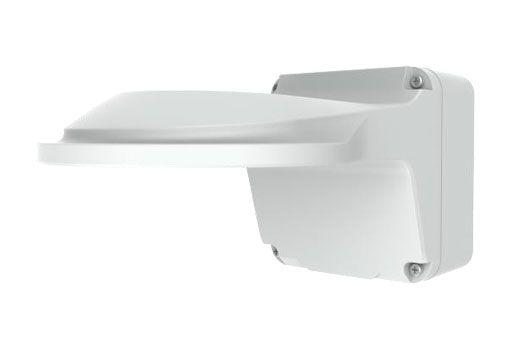

UNV - Wall mount with junction box (Extra back outlet for cable)

SKU: TRJB07/WM03FIN

MFR SKU: TR-JB07/WM03-F-IN

Specifications

ip	Ipv4, Ipv6
poe	Yes (802.3Af)
body	Eyeball
lens	2.8Mm Fixed Focal
type	Hd
audio	Audio Compression - G.711, Audio Suppression - Supported, Audio Sampling Rate - 8Khz
color	White
defog	Digital Defog
video	Main Stream: 8 Mp (3840 X 2160), Ma X 20 Fps, 5 Mp (3072 X 1728), Ma X 30 Fps, 4 Mp (2560 X 1440), Ma X 30 Fps, 1080P (1920 X 1080), Ma X 30 Fps, Sub Stream: 1080P (1920 X 1080), Ma X 30 Fps, 720P (1280 X 720), Ma X 30 Fps, D1 (720 X 576), Ma X 30 Fps
client	Ez Station, Ezview, Ezlive
coverage	Detect - 84 M, Observe - 33.6 M, Recognize - 16.8 M, Identify - 8.4 M
material	Metal
security	Password Protection, Strong Password, Https Encryption, Export Operation Logs, Basic And Digest Authentication For Rtsp, Digest Authentication For Http, Tls 1.2, Wsse And Digest Authentication For Onvif
iris type	Fixed
protocols	Ipv4, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Rtp, Rtsp, Rtcp, Rtmp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, Ssl/Tls, 802.1X, Snmp
reset key	No
lens mount	M12
protection	Ip67
resolution	8 Mp (3840 X 2160)
users host	Up To 32 Users. 3 User Levels: Administrator, Common And Operator
illuminator	Up To 30 M (98 Ft) Ir
web browser	Plug-In Required Live View - Ie9+, Chrome 41 And Below, Firefox 52 And Below, Plug-In Free Live View - Chrome 57.0+, Firefox 58.0+, Edge 16+
focal length	2.8 Mm
image sensor	1/2.7 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 5.5 Mm Dia Coaxial Power Plug
privacy mask	Up To 4 Areas
sd card slot	Micro Sd Slot, Up To 256 Gb
shutter mode	Auto, Manual
camera weight	0.79 Lb

day and night	Ir Cut Filter With Auto Switch (Icr)
ir wavelength	850 Nm
shutter speed	1 To 1/100000 Sec
video bitrate	128 Kbps - 16 Mbps
white balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
certifications	Fcc: Fcc Part 15, Ce: En 60950-1, Ul: Ul60950-1, Iec 60950-1
outdoor indoor	Outdoor
ai capabilities	Basic Detection- Cross Line, Intrusion(Based On Human Body Detection), Motion Detection, Tampering Alarm, Audio Detection
network storage	Nas (Nfs), Auto Network Replenishment (Anr)
angle adjustment	0-360 Deg Pan, 0-80 Deg Tilt, 0-360 Deg Rotate
general function	Watermark, Ip Address Filtering, Access Policy, Arp Protection, Rtsp Authentication, User Authentication, Http Authentication
surge protection	4 Kv
camera dimensions	4.6 X 3.8 In
image enhancement	Blc, Hlc
power consumption	4.5 W Maximum
ethernet interface	(1) Rj45 10 M/100 M Base-Tx
wide dynamic range	120 Db
built in microphone	Supported
nightvision color bw	Color - 0.005 Lux @ ( F1.6, Agc On), B/W - 0 Lux With Ir On
angular field of view	(H): 112.9 Deg, (V): 59.1 Deg, (O): 121.2 Deg
signal to noise ratio	>56 Db
maximum aperture ratio	F1.6
video compression type	Ultra 265/H.265/H.264/Mjpeg
region of interest roi	Up To 8 Areas
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Api, Sdk
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)
