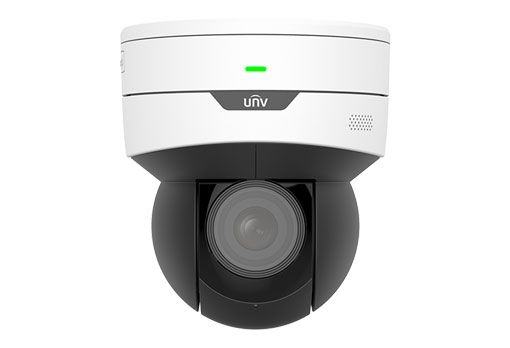

Unv® Ipc6415sr-x5upw-vg 2.7-13.5 Mm 5 Mp Mini Ptz Dome Ip Camera

KEY FEATURES

High quality image with 5MP,1/2.7 in CMOS sensor
2880*1620@30fps in the main stream, 16:9 aspect ratio
Ultra 265, H.265, H.264, MJPEG
5X optical zoom allows for closer viewing of subjects
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB Optical WDR (Wide Dynamic Range)
Wi-Fi connection and easy installation
Built-in Mic & Speaker, support two-way audio
Alarm 1 in and 1 out
Smart IR, up to 30m (98 ft) IR distance, Normal/flip vertical/flip horizontal/180 deg flip, Patrol stay time: 120 - 1800 sec, Support (IEEE802.11b/g/n) Wifi, 5.5 mm dia coaxial power plug Interface
2D/3D DNR Digital noise reduction, 4KV surge protection

Retail Price

+Quote

Essential Accessories

UNV - Junction box

$13.00

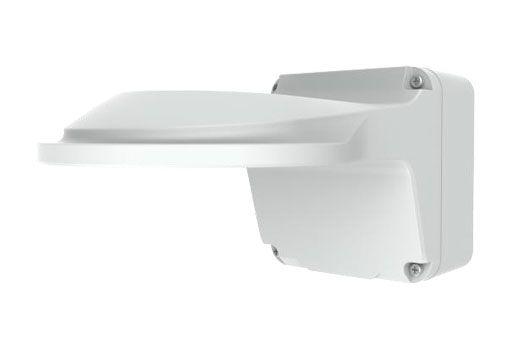

UNV - Wall mount with junction box (Extra back outlet for cable)

$31.20

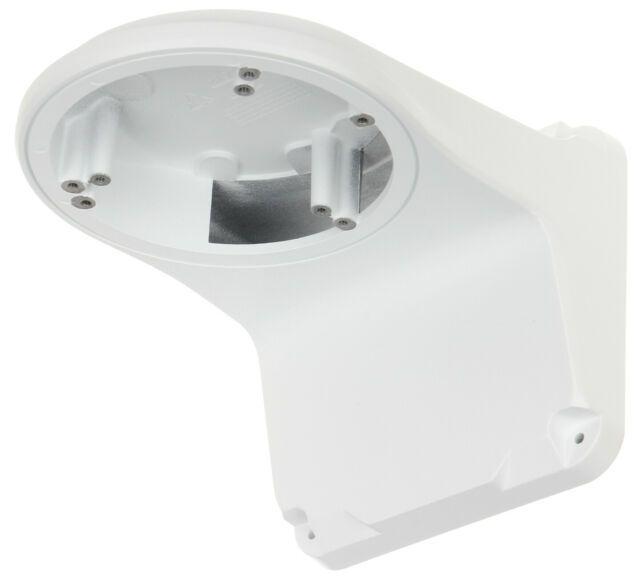

UNV - Wallmount Bracket For UNV Fixed Dome

$19.50

Specifications

	poe	Ieee 802.3Af		body	Mini Ptz Dome		lens	2.7-13.5Mm		type	Starlight		client	Ez Station Ezview Ezlive		security	Password Protection, Strong Password, Https Encryption, Basic And Digest Authentication For Rtsp, Digest Authentication For Http, Tls 1.2, Wsse And Digest Authentication For Onvif		iris type	Auto Aperture		protocols	Ipv4, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Pppoe, Rtp, Rtsp, Rtcp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, 802.1X, Snmp, Qos, Rtmp, Ssl/Tls		frame rate	Main Stream: 5Mp (2880X1620),Max 30 Fps, Main Stream: 5Mp (2880X1620),Max 30 Fps, Third Stream: D1 (720X576), Max 30 Fps		resolution	5 Mp		users host	Up To 32 Users. 3 User Levels: Administrator, Operator And Common User		illuminator	Color - 0.003 Lux @ (F1.2, Agc On), 0 Lux With Ir		web browser	Plug-In Required Live View: Ie 10 And Above, Chrome 45 And Above, Firefox 52 And Above, Edge 79 And Above		image sensor	1/2.7 In, 5.0 Mp, Progressive Scan, Cmos		power supply	12±25% Vdc		privacy mask	24 Areas, Up To 4 Areas Per Scene		audio bitrate	64 Kbps		camera weight	0.76 Kg		ir wavelength	850 Nm		preset patrol	16 Patrols, Up To 64 Presets For Each Patrol		shutter speed	1 To 1/100000 Sec

	video bitrate	128 Kbps - 16 Mbps		white balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2		certifications	Ce-Emc (En 55032: 2015+A1:2020; En 61000-3-3: 2013+A1: 2019; En Iec 61000-3-2: 2019+A1: 2021; En 55035: 2017+A11:2020) Fcc (Fcc Cfr 47 Part15 B, Ansi C63.4-2014), Fcc Id (Fcc Cfr 47 Part15 C) Ce Red (En 62311: 2008, En 300 328 V2.2.2(2019-07)		outdoor indoor	Indoor		ai capabilities	Motion Detection, Audio Detection, Tampering Alarm		network storage	Anr,Nas(Nfs)		angle adjustment	350 Deg Pan, 0-90 Deg Tilt		general function	Watermark, Ip Address Filtering, Alarm Input, Alarm Output, Access Policy, Arp Protection, Rtsp Authentication, User Authentication		audio compression	G.711U, G.711A		camera dimensions	129 X 143.6 Mm		number of presets	1024		power consumption	15 W Maximum		ethernet interface	(1) Rj45 10M/100M Base-Tx		wide dynamic range	120 Db		built in microphone	Supported		day and night switch	Ir-Cut Filter With Auto Switch (Icr)		angular field of view	(H): 106.9-30.6 Deg , (V): 56.0-17.7 Deg (V), (D): 131.5-39.8 Deg		signal to noise ratio	>56 Db		video compression type	Ultra 265/H.265, H.264/Mjpeg		environmental operating humidity	≤95% Rh (Non-Condensing)		environmental operating temperature	-10 To 50 Deg C
