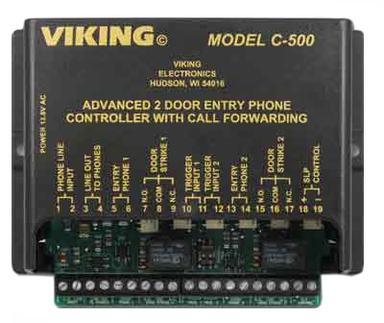

The C-500 allows single line telephones or a telephone system to share a phone line with two Viking entry phones. Tenants may answer an entry phone call, converse with the visitor and let them in with a touch tone command which activates one of two relays to control a gate or door strike.

The C-500 also has a built in five number dialer to call your cell phone or an outside line if there is no answer on the inside phone. If the outside call is busy or ring no answer, the C-500 can call up to four more numbers.

The C-500 provides the house phones with entry phone Caller ID and a Call Waiting tone if they are already on a call. Tenants may also call the entry phones for monitoring purposes or enter touch tone commands to activate, deactivate or toggle the doorsrike/gate control relays.

The C-500 allows up to 6 permanent keyless entry codes plus 2 one time use entry codes for each door. The C-500 provides optional entry phone distinctive ring, two trigger inputs for Request to Exit and field programmable Caller ID or beep tones when answered to indicate which door is activated.

Features:

Allows single line telephones or a telephone system to share a phone line with two Viking entry phones
Double and triple distinctive ringing, programmable entry phone Caller ID or beep tones allow you to distinguish front and back door entry calls from CO calls
Stackable - connect up to four C-500s to control up to eight entry points
Built in five number dialer (if inside phone doesnt answer), detects busy or ring no answer and goes on to the next number
Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
Analog Station Dial Through Mode allows entry phones to connect to analog PABX station or telephone line
Two N.O./N.C. 5A door strike relays with 1 or 2 digit activation commands
Monitor any entry phone by entering a touch tone
Up to 6 different keyless entry codes, and two one time use keyless entry codes per entrance
Auto answer for remote programming
Two trigger inputs for Request to Exit (REX), immediate call forwarding or lighted doorbell switches to activate entry phone calls
Produces Call Waiting tones if the entry phone is activated when the house phones are on a call
Compatible with the following Viking entry phones:

Specifications:

Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
Dimensions: 133mm x 104mm x 44mm (5.25"" x 4.1"" x 1.75"")
Shipping weight: 0.9kg (2 lbs.)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
Ring Output: 5 REN, capable of ringing (10) 0.5 REN phones
Talk Battery: 32V DC
Relay Contact Rating: 5A @ 30VDC / 250VAC
Maximum Connections: (19) cage clamp screw terminals

Applications:

Add one or two (expandable to 8) entry phones to your standard home or office phones to provide:

Provide commercial or residential security via two-way handsfree communication at the door and gate
Connects in series with a single phone line or to a phone systems unused line input (loop start trunk input)
High security building entry systems
Doorstrikes and gates in conjunction with entry phones or hot-line/panel phones
