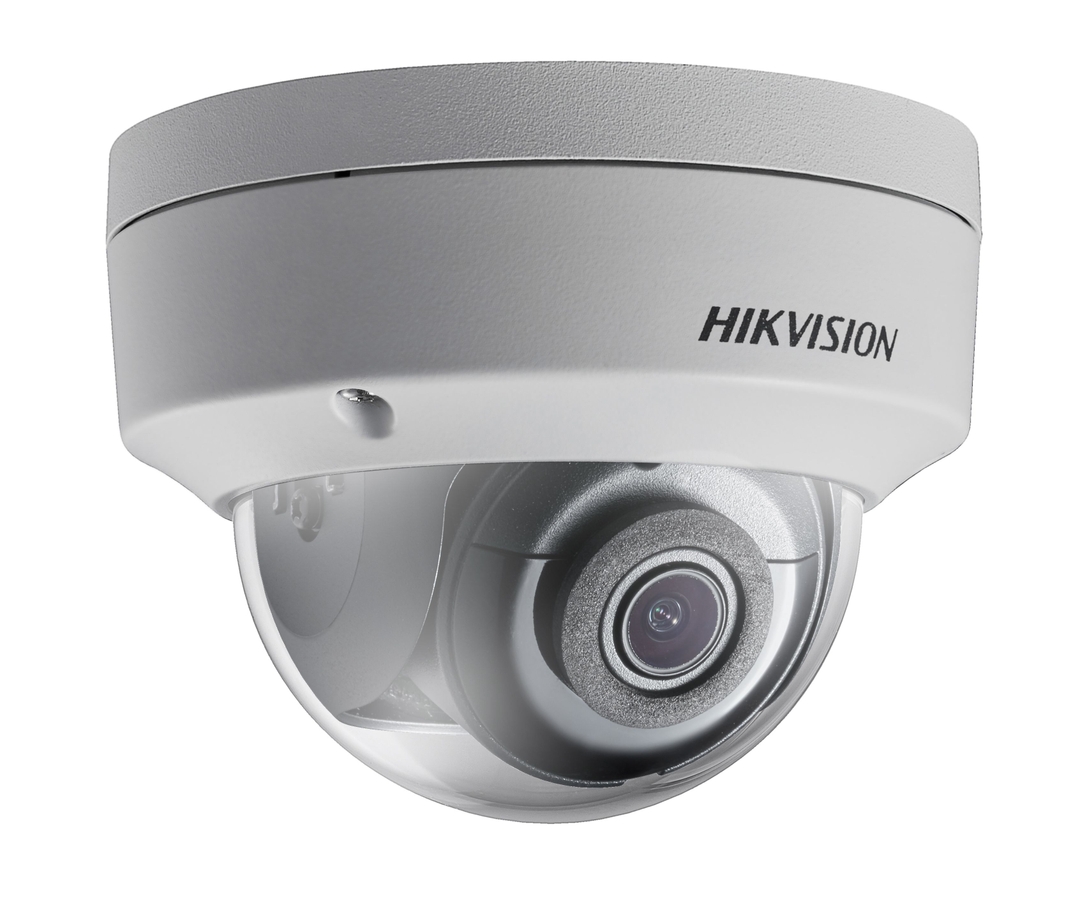

WDR PoE

SKU: DS-2CD2143G0-I 2.8mm

MFR SKU: DS-2CD2143G0-I(2.8mm)

By: Hikvision

KEY FEATURES

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Robust structure design with full metal materials

+Quote

Customers also bought:

DS-2CD2343G0-I 2.8mmEXIR WDR PoE

Specifications

ip	Ipv6
poe	Yes (802.3Af, Class 3)
body	Dome
lens	2.8Mm Fixed
type	Exir 2.0 Ir
alarm	(1) Input, (1) Output (Max 12 Vdc, 30 A), Terminal Block
audio	Audio Compression - G.711/G.722.1/G.726/Mp2L2/Pcm, Audio Bit Rate - 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 To 192 Kbps (Mp2L2), Audio Sampling Rate - 8 Khz/16 Khz/32 Khz/44.1 Khz/48 Khz, Environment Noise Filtering - Yes
color	White
video	Main-Stream - 50 Hz: 25 Fps (2688 X 1520, 2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720), 60 Hz: 30 Fps (2688 X 1520, 2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (640 X 480, 640 X 360, 320 X 240)
client	Ivms-4200, Hik-Connect, Hik-Central
series	Pro
material	Metal
security	Password Protection, Complicated Password, Https Encryption, 802.1X Authentication (Eap-Tls 1.2, Eap-Leap, Eap-Md5), Watermark, Ip Address Filter, Basic And Digest Authentication For Http/Https, Wsse And Digest Authentication For Onvif, Tls1.2
analytics	Motion Detection, Video Tampering Alarm, Exception, Line Crossing Detection, Intrusion Detection, Face Detection
iris type	Fixed
protocols	Tcp/Ip, Udp, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Rtcp, Pppoe, Ntp, Upnp, Smtp, Snmp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Websocket, Websocket'S
lens mount	M12
protection	Ik10, Ip67
resolution	4 Mp (2688 X 1520)
users host	Up To 32 Users. 3 User Levels: Administrator, Operator And User
illuminator	Up To 30 M
web browser	Plug-In Required Live View - Ie8+, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+/Safari 11+, Local Service - Chrome 41.0+/Firefox 30.0+
focal length	2.8 Mm
image sensor	1/3 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 0.5 A, 5.5 Mm Dia Coaxial Power Plug
sd card slot	Built-In Micro Sd/Sdhc/Sdxc Slot, Up To 128 Gb
shutter mode	Slow
camera weight	1.3 Lb
day and night	Ir Cut Filter

ir wavelength	850 Nm
shutter speed	1/3 - 1/100000 Sec
video bitrate	32 Kbps - 16 Mbps
white balance	Yes
image settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Agc, And White Balance Are Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor
ai capabilities	Basic Event - Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, Ip Address Conflict, Illegal Login, Hdd Full, Hdd Error), Smart Event - Line Crossing Detection, Intrusion Detection, Face Detection
network storage	Support Micro Sd/Sdhc/Sdxc Card (128 Gb), Local Storage And Nas (Nfs,Smb/Cifs), Anr
target cropping	No
angle adjustment	0-355 Deg Pan, 0-75 Deg Tilt, 0-355 Deg Rotate
firmware version	5.6.3
general function	Anti-Flicker, Three Streams, Heartbeat, Mirror, Privacy Masks, Password Reset Via E-Mail, Pixel Counter, Http Listening
webpage language	32 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	4.4 X 3.2 In
image enhancement	Blc, Hlc, 3D Dnr
power consumption	Maximum 6 W, Poe: Maximum 7.5 W, 0.2 A To 0.1 A (36 V To 57 V)
ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive
wide dynamic range	120 Db
day and night switch	Day, Night, Auto, Schedule, Triggered By Alarm In (-S)
nightvision color bw	Color - 0.01 Lux @ (F1.2, Agc On), 0.018 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir
angular field of view	(H): 103 Deg, (V): 58 Deg, (O): 123 Deg
maximum aperture ratio	F1.6
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265/H.264, Sub-Stream - H.265/H.264/Mjpeg, Third-Stream - H.265/H.264
environment noise filtering	Supported
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Onvif (Profile S, Profile G, Profile T), Isapi, Sdk, Ehome
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)
