| ip | Ipv6 |
|---|---|
| poe | Yes (802.3Af Class 3) |
| body | Dome |
| lens | 2.8Mm Fixed Focal |
| type | Acusense |
| audio | Audio Compression - G.711Ulaw/G.711Alaw/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac-Lc, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps-64 Kbps (Aac-Lc)/32-192 Kbps (Mp2L2)/8-320 Kbps (Mp3) |
| color | White |
| video | Main-Stream - 50 Hz: 25 Fps (2688 X 1520, 1920 X 1080, 1280 X 720), 60 Hz: 30 Fps (2688 X 1520, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (1280 X 720, 640 X 480, 640 X 360), 60 Hz: 30 Fps (1280 X 720, 640 X 480, 640 X 360) |
| client | Ivms-4200, Hik-Connect, Hik-Central |
| series | Pro |
| coverage | Detect - 67 M, Observe - 26 M, Recognize - 13 M, Identify - 6 M |
| material | Aluminum Alloy Body, Plastic Bubble |
| security | Password Protection, Complicated Password, Https Encryption, Ip Address Filter, Security Audit Log, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface |
| analytics | Motion Detection, People Detection, Vehicle Detection, Camera Sabotage/Tampering, Face Detection, Virtual-Line Crossing Detection, Intrusion Detection |
| iris type | Fixed |
| protocols | Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Websocket'S |
| reset key | Yes |
| lens mount | M12 |
| protection | Ip67 (Iec 60529-2013), Ik10 (Iec 62262: 2002) |
| resolution | 4 Mp (2688 X 1520) |
| users host | Up To 32 Users, 3 User Levels: Administrator, Operator And User |
| illuminator | Up To 30 M Ir Supplement Light |
| web browser | Plug-In Required Live View - Ie 10/Ie 11, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+, Local Service - Chrome 57.0+/Firefox 52.0+ |
| face capture | Supported |
| focal length | 2.8Mm |
| image sensor | 1/3 In Progressive Scan Cmos |
| power supply | 12 Vdc +/-25%, 0.4 A, Max 5 W, 5.5 Mm Dia Coaxial Power Plug, Reverse Polarity Protection |
| sd card slot | Built-In Memory Card Slot, Support Micro Sd Card, Up To 512 Gb |
| shutter mode | Slow |
| camera weight | 1.3 Lb |
| day and night | Ir Cut Filter |
| ir wavelength | 850 Nm |
| shutter speed | 1/30 - 1/100000 Sec |
|---|---|
| video bitrate | 32 Kbps - 8 Mbps |
| certifications | Fcc (47 Cfr Part 15, Subpart B), Ce-Emc (En 55032: 2015, En 61000-3-2: 2014, En 61000-3-3: 2013, En 50130-4: 2011 +A1: 2014), Rcm (As/Nzs Cispr 32: 2015), Ic (Ices-003: Issue 6, 2016), Kc (Kn 32: 2015, Kn 35: 2015), Ul (Ul 60950-1) |
| image settings | Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Adjustable By Client Software Or Web Browser |
| outdoor indoor | Outdoor |
| ai capabilities | Basic Event - Motion Detection (Human And Vehicle Targets Classification), Video Tampering Alarm, Exception, Smart Event - Line Crossing Detection, Intrusion Detection (Support Alarm Triggering By Specified Target Types (Human And Vehicle), Face Detection |
| network storage | Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr) |
| angle adjustment | 0-355 Deg Pan, 0-75 Deg Tilt, 0-355 Deg Rotate |
| bit rate control | Cbr/Vbr |
| general function | Anti-Flicker, Heartbeat, Password Reset Via E-Mail, Pixel Counter |
| webpage language | 33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean |
| camera dimensions | 4.8 X 3.7 In |
| image enhancement | Blc, Hlc, 3D Dnr |
| power consumption | Max 6.5 W, Poe: 0.2 A To 0.15 A (36 V To 57 V) |
| ethernet interface | (1) Rj45 10 M/100 M Self-Adaptive |
| wide dynamic range | 120 Db |
| built in microphone | Yes |
| day and night switch | Day, Night, Auto, Schedule |
| nightvision color bw | Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir On |
| angular field of view | (H): 103 Deg, (V): 55 Deg, (O): 122 Deg |
| signal to noise ratio | >52 Db |
| maximum aperture ratio | F1.6 |
| simultaneous live view | Up To 6 Channels |
| video compression type | Main-Stream - H.265/H.264/H.264+/H.265+, Sub-Stream - H.265/H.264/Mjpeg, Third Stream - H.265/H.264 |
| image parameters switch | Yes |
| region of interest roi | 1 Fixed Region For Main-Stream And Sub-Stream |
| environment noise filtering | Supported |
| scalable video coding svc | H.264 And H.265 Encoding |
| environmental operating humidity | 95% Or Less Rh (Non-Condensing) |
| application programming interface | Open Network Video Interface (Profile S, Profile G), Isapi, Sdk |
| environmental operating temperature | -30 To 60 Deg C (-22 To 140 Deg F) |

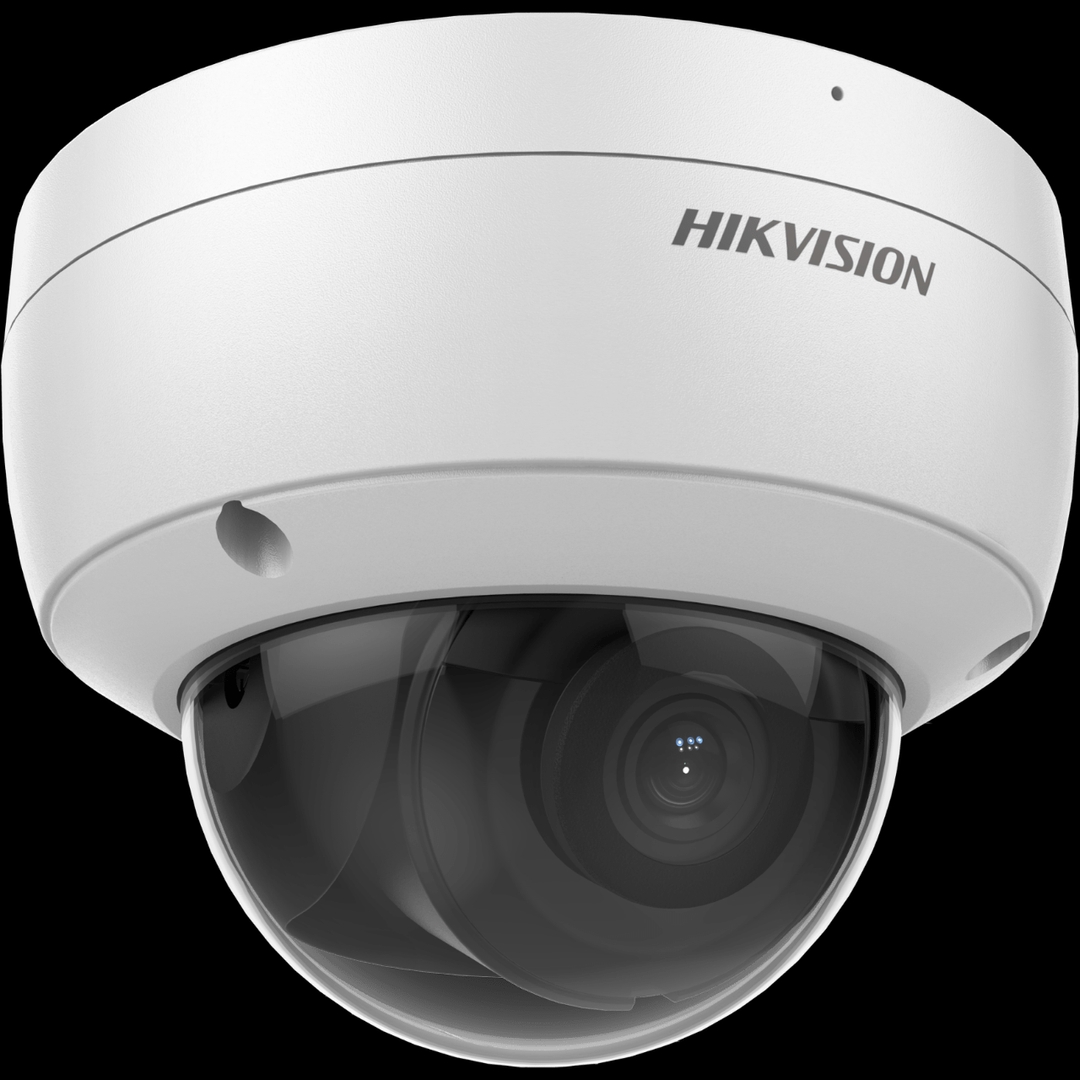

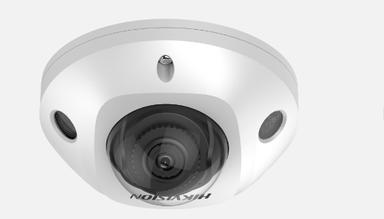

HIKVISION - Camera IP Compact Dome 4MP 2.8MM IR Audio accusense
SKU: DS-2CD2543G2-IS
By: hikvision

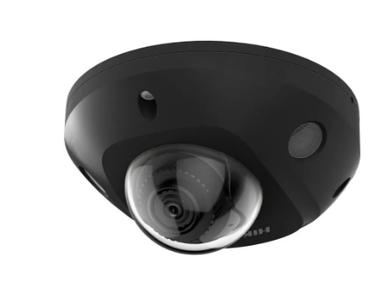

HIKVISION - CAMERA DOME IP 2.8MM BLACK
SKU: DS2CD2143G2IUB
By: hikvision
HIKVISION - Camera IP Compact Dome 4MP 2.8MM IR Audio Black
SKU: DS-2CD2543G2-BK
By: hikvision

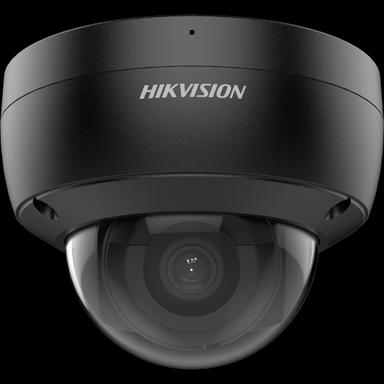

HIKVISION - Camera IP Dome 8MP 4MM IR H265+ AcuSense Technology
