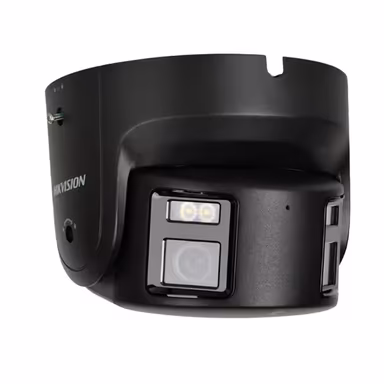

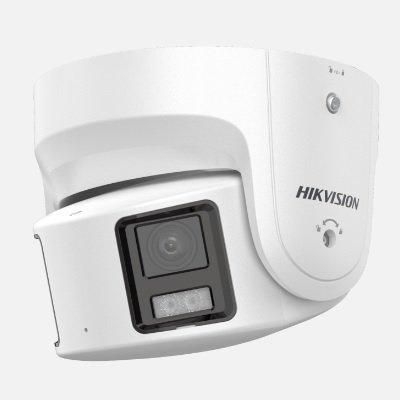

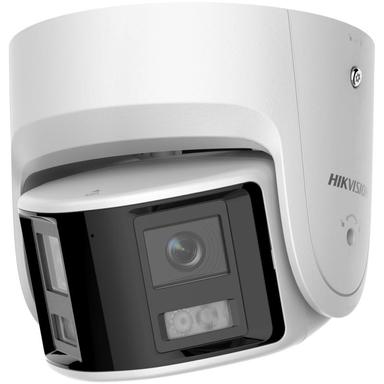

HIKVISION - Camera 180 Turret ColorVu 8MP DS-2CD2387G2P-LSU/SL 4MM

SKU: DS-2CD2387G2P-L

MFR SKU: DS-2CD2387G2P-LSU/SL 4MM

By: Hikvision

HIKVISION - Camera 180 Turret ColorVu 8MP DS-2CD2387G2P-LSU/SL 4MM

KEY FEATURES

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Network Storage - Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Audio - 1 Input (Line In)/1 Output (Line Out), Terminal Block, Max Input Amplitude: 3.3 Vpp, Input Impedance: 4.7 KΩ/Output Impedance: 100 Ω, Interface Type: Non-Equilibrium
Alarm - 1 input, 1 output (max 12 VDC, 20 mA)
Network Storage - Together with high-end Hikvision memory card, memory card encryption and health detection are supported

+Quote

Customers also bought:

HTH-473ZJ-155Hunt CCTV - Wall Mount For Hikvision Verifocal Turret VDZ

Essential Accessories

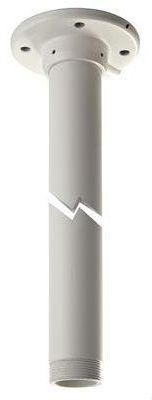

HIKVISION - Ceiling Mount Bracket Pendant Hikvision

SKU: CPM

MFR SKU: CPM

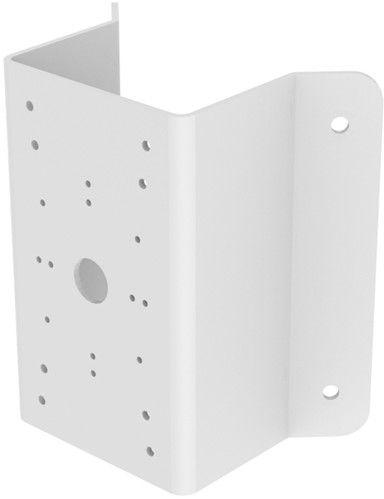

HIKVISION - Corner Bracket For Hikvision PTZ Camera

SKU: CMP

MFR SKU: CMP

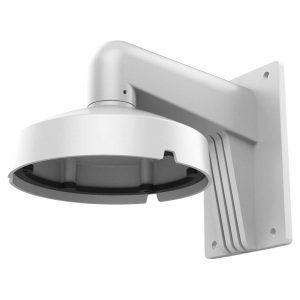

Hunt CCTV - Wall Mount For Hikvision Verifocal Turret VDZ

SKU: HTH-473ZJ-155

MFR SKU: HTH-473ZJ155

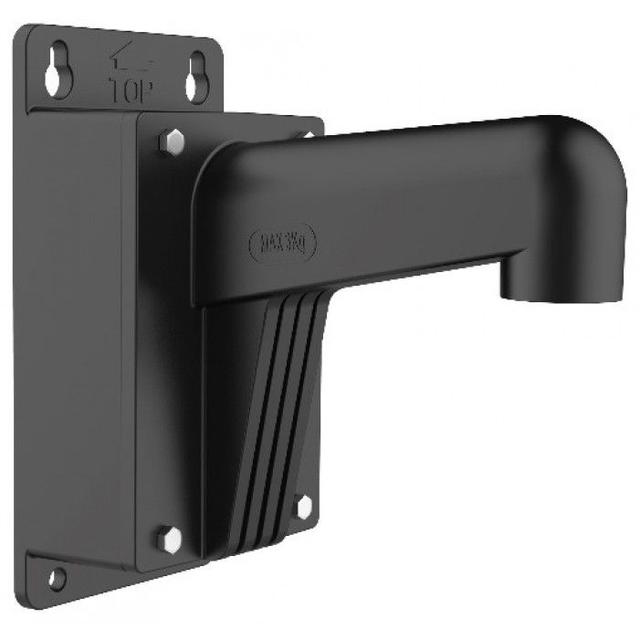

HIKVISION - Wall Mount Bracket Long For Hikvision Black

SKU: WMLB

MFR SKU: WMLB

HIKVISION - Bracket, Pendant Cap, 155mm Black

SKU: PC155B

MFR SKU: PC155B

Specifications

ip	Ipv4, Ipv6
poe	Yes (802.3Af, Class 3)
body	Turret
lens	4Mm Fixed Focal
type	Panoramic Colorvu
audio	Audio Type - Mono Sound, Audio Compression - G.711/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac-Lc, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 To 192 Kbps (Mp2L2)/8 To 320 Kbps (Mp3)/16 To 64 Kbps (Aac-Lc)
color	White
video	Main Stream - When Wdr Is On: 50 Hz: 12.5 Fps (5120 X 1440), 60 Hz: 15 Fps (5120 X 1440), When Wdr Is Off: 50 Hz: 20 Fps (5120 X 1440), 60 Hz: 20 Fps (5120 X 1440), Sub-Stream - When Wdr Is On: 50 Hz: 12.5 Fps (1920 X 536, 960 X 272)
client	Ivms-4200, Hik-Connect, Hik-Central
series	Pro
coverage	Detect - 77 M, Observe - 30 M, Recognize - 15 M, Identify - 7 M
material	Metal
security	Password Protection, Complicated Password, Https Encryption, 802.1X Authentication (Eap-Md5), Watermark, Ip Address Filter, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface
analytics	Entering/Exiting, Intrusion Detection, Motion Detection, People Detection, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
iris type	Fixed
protocols	Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Rtcp, Pppoe, Ntp, Upnp, Smtp, Snmp, Igmp, 802.1X, Qos, Ipv4, Ipv6, Udp, Bonjour, Ssl/Tls, Isup, Arp, Websocket, Websocket'S
reset key	Yes
lens mount	M16
protection	Ip67 (Iec 60529-2013)
resolution	8 Mp (5120 X 1440)
users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User
illuminator	Up To 30 M Ir White Supplement Light
web browser	Plug-In Required Live View - Ie 10/Ie 11, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+/Edge 89+, Local Service - Chrome 57.0+/Firefox 52.0+/Edge 89+
face capture	Supported
focal length	4Mm
image sensor	2 X 1/1.8 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 0.88 A, 5.5 Mm Dia Coaxial Power Plug
sd card slot	Built-In Memory Card Slot, Support Micro Sd/Micro Sdhc/Micro Sdxc Card, Up To 512 Gb
camera weight	2.4 Lb
day and night	Color
shutter speed	1/30 - 1/100000 Sec
video bitrate	32 Kbps - 16 Mbps

white balance	Yes
certifications	Fcc: 47 Cfr Part 15, Subpart B, Ce-Emc: En 55032: 2015, En 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011 +A1: 2014, Rcm: As/Nzs Cispr 32: 2015, Ic: Ices-003: Issue 7, Ul: Ul 62368-1, Cb: Iec 62368-1: 2014+A11
depth of field	3.6 M To Infinity
image settings	Saturation, Brightness, Contrast, Sharpness, Agc And White Balance Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor
ai capabilities	Basic Event - Motion Detection (Support Alarm Triggering By Specified Target Types (Human And Vehicle), Alarm Input And Output, Flashing Alarm Light Output, Audible Alarm Output, Exception, Smart Event - Scene Change Detection
network storage	Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr), Nvr
angle adjustment	0-30 Deg Pan, -75 To 75 Deg Tilt
bit rate control	Cbr/Vbr
built in speaker	Max. Power Consumption - 1.2 W, Max Sound Pressure - 10 Cm - 95 Db
general function	Anti-Banding, Heartbeat, Password Reset Via E-Mail, Password Protection, One-Key Reset
webpage language	33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	6.1 X 6.1 In
image enhancement	Blc, Hlc, 3D Dnr
power consumption	Maximum 10.5 W, Poe: Maximum 12.5 W, 0.35 A To 0.22 A (36 V To 57 V)
ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive
wide dynamic range	130 Db
built in microphone	Yes
day and night switch	Day, Night, Auto, Schedule
nightvision color bw	Color - 0.0005 Lux @ (F1.0, Agc On), B/W - 0 Lux With Light
angular field of view	(H): 180 Deg, (V): 44 Deg
signal to noise ratio	>52 Db
maximum aperture ratio	F1.0
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg
image parameters switch	Yes
region of interest roi	1 Fixed Region For Main-Stream
environment noise filtering	Supported
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Isapi, Sdk, Isup
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)
