Hikvision - Camera Ip Compact Dome 4mp 2.8mm Ir Audio Black

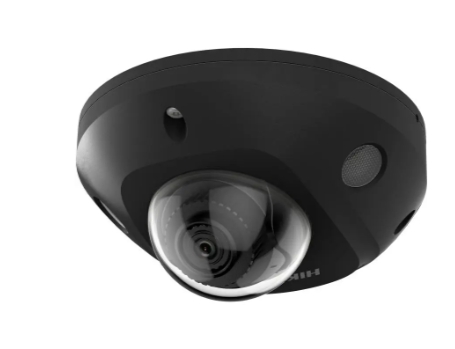

HIKVISION - Camera IP Compact Dome 4MP 2.8MM IR Audio Black

SKU: DS-2CD2543G2-BK

MFR SKU: DS-2CD2543G2-IS 2.8mm BLACK

By: Hikvision

HIKVISION - Camera IP Compact Dome 4MP 2.8MM IR Audio Black

KEY FEATURES

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK08)
Audio and alarm interface available
Audio - 1 Input (Line In)/1 Output (Line Out), Two-Core Terminal Block, Max Input Amplitude: 3.3 Vpp, Input Impedance: 4.7 KΩ/Output Impedance: 100 Ω, Interface Type: Non-Equilibrium

+Quote

Essential Accessories

HIKVISION - Wall Mount Bracket For Hikvisio Short BK

SKU: WMSB

MFR SKU: WMSB

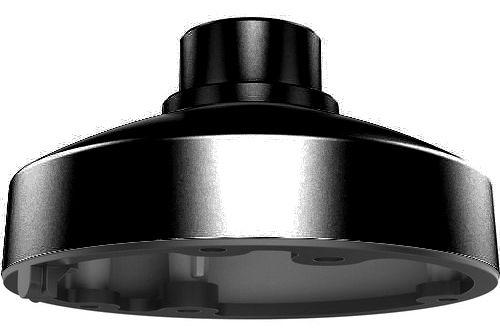

HIKVISION - Pendant Cap For Hikvision Mini Dome BK

SKU: PC120B

MFR SKU: PC120B

LIONBEAM - Outlet Box 1-1/4 For Hikvision Mini Dome grey

SKU: LB-BB-MD-B

Specifications

ip	Ipv6
poe	Yes (802.3Af)
body	Mini Dome
lens	2.8Mm Fixed Focal
type	Acusense
alarm	(1) Input, (1) Output (Max (1) 2 Vdc, 20 Ma)
audio	Audio Compression - G.711Ulaw/G.711Alaw/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac-Lc, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (Mp2L2)/8-320 Kbps (Mp3)/16-64 Kbps (Aac-Lc)
color	Black
video	Main-Stream - 50 Hz: 25 Fps (2688 X 1520, 1920 X 1080, 1280 X 720), 60 Hz: 30 Fps (2688 X 1520, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (1280 X 720, 640 X 480, 640 X 360), 60 Hz: 30 Fps (1280 X 720, 640 X 480, 640 X 360)
client	Ivms-4200, Hik-Connect, Hik-Central
series	Pro
coverage	Detect - 64 M, Observe - 25 M, Recognize - 13 M, Identify - 6 M
material	Aluminum Base, Plastic Cover
security	Password Protection, Complicated Password, Https Encryption, Ip Address Filter, Security Audit Log, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface
analytics	Motion Detection, People Detection, Vehicle Detection, Camera Sabotage/Tampering, Face Detection, Virtual-Line Crossing Detection, Intrusion Detection
iris type	Fixed
protocols	Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X (Except For -W Model), Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Websocket, Websocket'S
reset key	Yes
lens mount	M12
protection	Ip67 (Iec 60529-2013), Ik8 (Iec 62262:2002)
resolution	4 Mp (2688 X 1520)
users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User
illuminator	Up To 30 M Ir Supplement Light
web browser	Plug-In Required Live View - Ie 10/Ie 11, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+, Local Service - Chrome 57.0+/Firefox 52.0+
focal length	2.8Mm
image sensor	1/3 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 0.45 A, 5.5 Mm Dia Coaxial Power Plug, Reverse Polarity Protection
sd card slot	Built-In Memory Card Slot, Support Micro Sd/Micro Sdhc/Micro Sdxc Card, Up To 512 Gb
camera weight	0.8 Lb
day and night	Ir Cut Filter
ir wavelength	850 Nm
shutter speed	1/30 - 1/100000 Sec

video bitrate	32 Kbps - 8 Mbps
certifications	Fcc (47 Cfr Part 15, Subpart B), Ce-Emc (En 55032: 2015, En 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011+A1: 2014), Rcm (As/Nzs Cispr 32: 2015), Ic (Ices-003: Issue 7), Kc (Kn32: 2015, Kn35: 2015), Ul (Ul 62368-1)
depth of field	1.4 M To Infinity
image settings	Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor
ai capabilities	Basic Event - Motion Detection (Human And Vehicle Targets Classification), Video Tampering Alarm, Exception, Smart Event - Line Crossing Detection, Intrusion Detection (Support Alarm Triggering By Specified Target Types (Human And Vehicle), Face Detection
network storage	Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)
angle adjustment	-30 To 30 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate
bit rate control	Cbr/Vbr
general function	Anti-Flicker, Heartbeat, Mirror, Password Reset Via E-Mail, Pixel Counter
webpage language	33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	4.3 X 2.3 In
image enhancement	Blc, Hlc, 3D Dnr
power consumption	Maximum 5.5 W, Poe: Maximum 6.5 W, 0.18 A To 0.11 A (802.3Af, 36 V To 57 V)
ethernet interface	(1) Rj45 10 M/100 M Self-Adaptive
wide dynamic range	120 Db
built in microphone	Yes
day and night switch	Day, Night, Auto, Schedule
nightvision color bw	Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir
angular field of view	(H): 83.7 Deg, (V): 43 Deg, (O): 100.3 Deg
signal to noise ratio	>52 Db
maximum aperture ratio	F1.6
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg, Third Stream - H.265/H.264 (Third Stream Is Supported Under Certain Settings)
image parameters switch	Yes
region of interest roi	1 Fixed Region For Main-Stream And Sub-Stream
environment noise filtering	Supported
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G), Isapi, Sdk
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)

Guides & Spec Sheets

Datasheet_V5.5.115_20230303.pdfBy Hikvision
