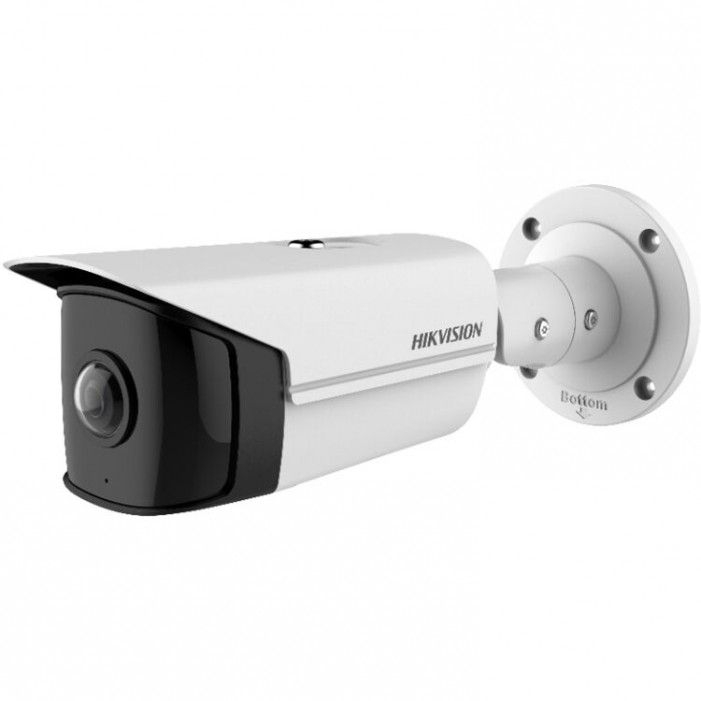

HIKVISION - Camera IP Bullet 4 MP Super Wide angle (180 degree)

SKU: DS-2CD2T45G0P-I

MFR SKU: DS-2CD2T45G0P-I

By: Hikvision

HIKVISION - Camera IP Bullet 4 MP Super Wide angle (180 degree)

KEY FEATURES

High quality imaging with 4 MP resolution
180 deg super wide field of view
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Distortion correction
Water and dust resistant (IP67)

+Quote

Essential Accessories

Hunt CCTV - Pole Mount Adapter Hikvision

SKU: HTH-275ZJ

MFR SKU: HTH-275ZJ

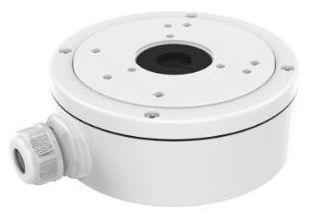

Hunt CCTV - Junction Box for MB,VB,Cameras

SKU: HTH-280ZJ-S

MFR SKU: HTH-280ZJ-S

Hunt CCTV - Corner Mount Adapter For Hikvision/lionbeam cameras

SKU: HTH-276ZJ

MFR SKU: HTH-276ZJ

Specifications

ip	Ipv6
poe	Yes (802.3Af)
body	Bullet
lens	1.68Mm Fixed Focal
color	White
video	Main-Stream - 50 Hz: 25 Fps (2688 X 1520, 2304 X 1296, 1920 X 1080, 1280 X 720), 60 Hz: 24 Fps (2688 X 1520), 30 Fps (2304 X 1296, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (640 X 480, 640 X 360, 320 X 240)
client	Ivms-4200, Hik-Connect, Hik-Central
series	Pro
coverage	Detect - 3.6 M, Observe - 1.4 M, Recognize - 0.8 M, Identify - 0.4 M
material	Metal
security	Password Protection, Complicated Password, Https Encryption, 802.1X Authentication (Eap-Tls 1.2, Eap-Leap, Eap-Md5), Watermark, Ip Address Filter, Basic And Digest Authentication For Http/Https, Wsse And Digest Authentication For Onvif, Tls1.2
iris type	Fixed
protocols	Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Pppoe, Ntp, Upnp, Smtp, Snmp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Websocket, Websocket'S
reset key	Yes
lens mount	M12
protection	Ip67
resolution	4 Mp (2688 X 1520)
users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User
illuminator	Up To 20 M
web browser	Plug-In Free Live View - Chrome45.0+, Firefox52.0+, Local Service - Chrome41.0+, Firefox30.0+
face capture	Supported
focal length	1.68Mm
image sensor	1/2.7 In Progressive Scan Cmos
power supply	12 Vdc ± 25%
privacy mask	4 Regions
sd card slot	Built-In Micro Sd/Sdhc/Sdxc Slot, Up To 256 Gb
shutter mode	Slow
camera weight	1.26 Lb
day and night	Icr Cut

ir wavelength	850 Nm
shutter speed	1/3 - 1/100000 Sec
video bitrate	32 Kbps - 16 Mbps
white balance	Yes
3d positioning	Yes
image settings	Saturation, Brightness, Contrast, Sharpness, Rotate Mode, White Balance, Agc
outdoor indoor	Outdoor
ai capabilities	Smart Event - Line Crossing Detection, Intrusion Detection, Unattended Baggage Detection, Object Removal Detection, Face Detection, Scene Change Detection
network storage	Micro Sd/Sdhc/Sdxc Card (256 Gb) Local Storage And Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)
angle adjustment	0-360 Deg Pan, 0-90 Deg Tilt, 0-360 Deg Rotate
bit rate control	Cbr, Vbr
general function	Privacy Mask, Heart, Mirror, Flash Log, Password Reset Via E-Mail, Pixel Counter
webpage language	32 Languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	4.1 X 10.9 In
image enhancement	Blc, Hlc, Eis, Lens Distortion, 3D Dnr
power consumption	Maximum 7.2 W, Poe: Maximum 8.7 W, 0.3 To 0.2 A, (36 V To 57 V)
wide dynamic range	120 Db
day and night switch	Day, Night, Auto, Schedule
nightvision color bw	Color - 0.028 Lux @ (F2.0, Agc On), 0 Lux With Ir
angular field of view	(H): 180 Deg, (V): 101 Deg, (O): 180 Deg
maximum aperture ratio	F2.0
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265+/H.265/H.264+/H.264; Sub-Stream - H.265/H.264 /Mjpeg
region of interest roi	1 Fixed Region For Main-Stream And Sub-Stream
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less (Non-Condensing)
application programming interface	Onvif (Profile S, Profile G), Isapi, Sdk
environmental operating temperature	-22 To 140 Deg F

Guides & Spec Sheets

1063742985.pdfBy Hikvision
