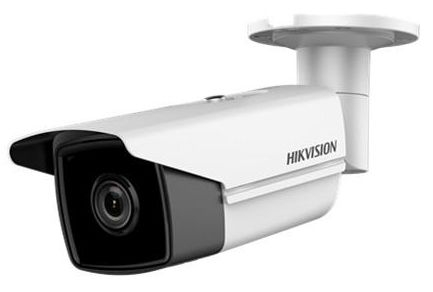

H.265+

SKU: DS2CD2T55FWDI54

MFR SKU: DS-2CD2T55FWD-I5 4MM

By: Hikvision

KEY FEATURES

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal materials

+Quote

Specifications

ip	Ipv6
poe	Yes (802.3Af, Class 3)
body	Bullet
lens	4Mm Fixed Focal
color	White
video	Main-Stream - 50 Hz: 20 Fps (2944 X 1656), 25 Fps (2560 X 1440, 1920 X 1080, 1280 X 720),60 Hz: 20 Fps (2944 X 1656), 30 Fps (2560 X 1440, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (640 X 480, 640 X 360, 320 X 240)
client	Ivms-4200, Hik-Connect, Hik-Central
series	Value Series (All)
material	Metal
analytics	Motion Detection, Video Tampering, Network Disconnected, Ip Address Conflict, Hdd Full, Hdd Error, Illegal Login
iris type	Fixed
protocols	Tcp/Ip, Udp, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Rtcp, Pppoe, Ntp, Upnp, Smtp, Snmp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls
reset key	Yes
lens mount	M12
protection	Ip67
resolution	5 Mp (2560 X 1944)
users host	Up To 32 Users, 3 User Levels: Administrator, Operator And User
illuminator	Up To 50 M
web browser	Plug-In Required Live View - Ie8+, Plug-In Free Live View - Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service - Chrome 41.0+, Firefox 30.0+
face capture	Supported
focal length	4Mm
image sensor	1/2.9 In Progressive Scan Cmos
power supply	12 Vdc ± 25%
sd card slot	Built-In Micro Sd/Sdhc/Sdxc Slot, Up To 128 Gb
shutter mode	Slow
camera weight	2.65 Lb

day and night	Ir Cut Filter
shutter speed	1/3 - 1/100000 Sec
video bitrate	32 Kbps - 16 Mbps
white balance	Yes
3d positioning	Yes
image settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Agc And White Balance Are Adjustable By Client Software Or Web Browser
outdoor indoor	Outdoor
ai capabilities	Basic Event - Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, Ip Address Conflict, Illegal Login, Hdd Full, Hdd Error), Smart Event - Line Crossing Detection, Intrusion Detection, Unattended Baggage, Object Removal
network storage	Supports Micro Sd/Sdhc/Sdxc Card (128 Gb) Local Storage, Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr)
angle adjustment	0-360 Deg Pan, 0-100 Deg Tilt, 0-360 Deg Rotate
general function	Anti-Flicker, Three Streams, Heartbeat, Mirror, Privacy Masks, Password Reset Via E-Mail, Pixel Counter, Hot Listening
webpage language	32 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean
camera dimensions	4.13 X 11.8 In
image enhancement	Blc, 3D Dnr, Hlc
power consumption	7 W, Poe: 9 W
wide dynamic range	120 Db
day and night switch	Day, Night, Auto, Schedule
nightvision color bw	Color - 0.01 Lux @(F1.2; Agc On), 0.028 Lux @(F2.0; Agc On), 0 Lux With Ir
angular field of view	(H): 78 Deg
maximum aperture ratio	Fixed
simultaneous live view	Up To 6 Channels
video compression type	Main-Stream - H.265/H.264, Sub-Stream - H.265/H.264/Mjpeg, Third-Stream - H.265/H.264
region of interest roi	Support 1 Fixed Region For Main Stream And Sub Stream Separately
environmental operating humidity	95% Or Less (Non-Condensing)
application programming interface	Onvif (Profile S, Profile G, Profile T), Isapi, Sdk
environmental operating temperature	-22 To 140 Deg F

Guides & Spec Sheets

spec.pdfBy Hikvision
