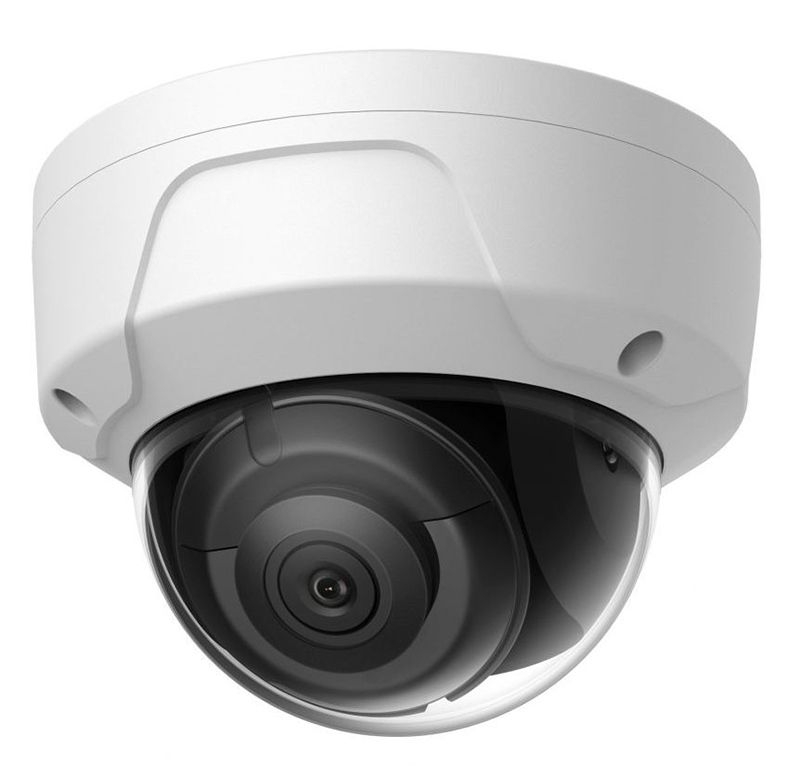

Hunt CCTV - Camera IP Dome 6MP 2.8MM IR H.265

SKU: HNC326G2-TD/2.8

MFR SKU: HNC326G2-TD/2.8

By: Hunt CCTV

Hunt CCTV - Camera IP Dome 6MP 2.8MM IR H.265

KEY FEATURES

6 MP (3072 x 2048) resolution
3D DNR, 120dB WDR, BLC
IP67 & IK10 Rating
12 VDC & PoE (802.3af)
Vandal-proof
Electrical Box: HTH-280ZJ-DM18, Wall Mount: HTH-258ZJ, HTH-272ZJ-110B, Pendant: HTH-271ZJ-110, Corner and Pole: C:HTH-276ZJ, P:HTH-275ZJ
3D DNR Digital noise reduction

+Quote

Specifications

poe	802.3Af
body	Fixed Mini Dome
lens	2.8Mm
type	Wdr
alarm	Motion Detection, Tampering Alarm
protocols	Tcp/Ip, Http, Dhcp, Dns, Ddns, Rtp, Rtsp, Pppoe, Smtp, Ntp, Snmp, Https, Ftp, 802.1X, Qos
frame rate	60 Hz: 20 Fps (3200 X 1800), 30 Fps (2688 X 1520, 1920 X 1080, 1280 X 720)
protection	Ip67, Ik10
resolution	6 Mp (3072 X 2048)
illuminator	Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir
image sensor	1/2.8 In Progressive Scan Cmos
power supply	12 Vdc +/-25%
camera weight	520 G
day and night	Icr

shutter speed	1/3 To 1/100000 Sec
certifications	Onvif(Profile S, Profile G), Psia, Cgi, Isapi
image settings	Saturation, Brightness, Contrast, Sharpness Adjustable Through Client Software Or Web Browser
angle adjustment	0-355 Deg Pan, 0-75 Deg, 0-355 Deg Rotate
general function	One-Key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, Ip Address Filter
camera dimensions	110.8 X 84.7 Mm
power consumption	12 Vdc, 6.2 W, 7.5 W
ethernet interface	(1) Rj45 10M/100M Self-Adaptive
wide dynamic range	True Wdr
angular field of view	63.5 Deg
video compression type	Main Stream - H.265/H.264/H.264+/H.265+, Sub-Stream - H.265/H.264/Mjpeg
environmental operating humidity	95% Or Less (Non-Condensing)
environmental operating temperature	-30 To 60 Deg C

Guides & Spec Sheets

HNC326-TD.pdfBy Hunt CCTV
