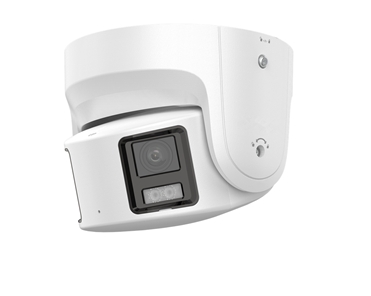

Hunt CCTV - Camera Turret 180' 8MP ColorVu 4MM IR W/audio
SKU: HNC348G2P-XDLUS
MFR SKU: HNC348G2P-XDLUSL
By: Hunt CCTV
Share
KEY FEATURES
- 8 Megapixel (5120 × 1440) Resolution
- PoE
- Full Color Night View
- H.265
- Strobe light with audible alarm
- Smart Sense
- Built-in Mic and Speaker
In stock
Retail price:
$280.01
1
Essential Accessories
HIKVISION - Ceiling Mount Bracket Pendant Hikvision
MFR SKU: CPM
SKU: CPM
$27.78

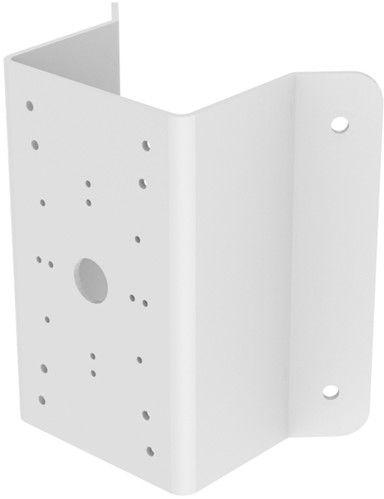

HIKVISION - Corner Bracket For Hikvision PTZ Camera
MFR SKU: CMP
SKU: CMP
$26.67
HIKVISION - Wall Mount Bracket Long For Hikvision Black
MFR SKU: WMLB
SKU: WMLB
$31.11

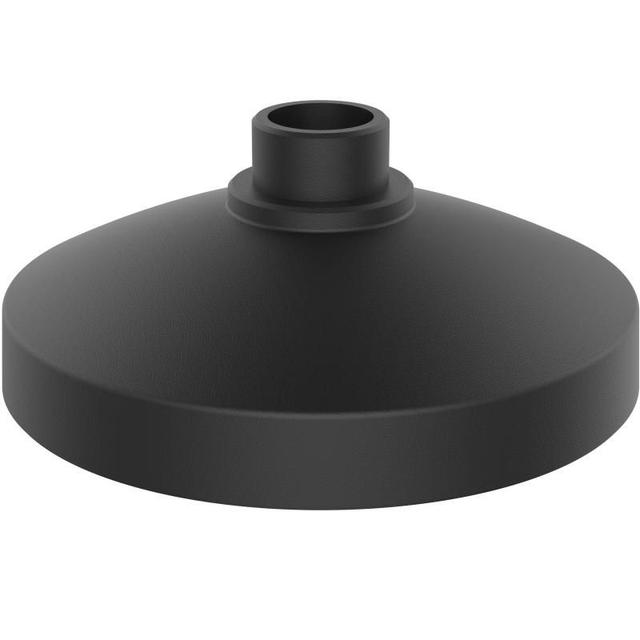

HIKVISION - Bracket, Pendant Cap, 155mm Black
MFR SKU: PC155B
SKU: PC155B
$28.89
HIKVISION - BACK BOX FOR DS-2CD2387G2P-LSU/SL Black
MFR SKU: CB155B
SKU: CB155B
$25.71
Specifications
| ip | Ipv6 |
|---|---|
| poe | Yes (802.3Af) |
| body | Turret |
| lens | 4Mm Fixed Focal |
| type | Panoramic |
| alarm | (1) Input, (1) Output (Max 24 Vdc, (1) A) |
| audio | Audio Type - Mono Sound, Audio Compression - G.711/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac-Lc, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 To 192 Kbps (Mp2L2)/8 To 320 Kbps (Mp3)/16 To 64 Kbps (Aac-Lc) |
| color | White |
| video | Main Stream - When Wdr Is On:50 Hz: 12.5 Fps (5120 X 1440), 60 Hz: 15 Fps (5120 X 1440), When Wdr Is Off: 50 Hz: 20 Fps (5120 X 1440), 60 Hz: 20 Fps (5120 X 1440), Sub-Stream - When Wdr Is On: 50 Hz: 12.5 Fps (1920 X 536, 960 X 272) |
| coverage | Detect - 77 M, Observe - 30 M, Recognize - 15 M, Identify - 7 M |
| material | Metal |
| security | Password Protection, Complicated Password, Https Encryption, 802.1X Authentication (Eap-Md5), Watermark, Ip Address Filter, Basic And Digest Authentication For Http/Https, Wsse And Digest Authentication For Open Network Video Interface |
| iris type | Fixed |
| protocols | Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X, Qos, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Snmp |
| reset key | Yes |
| protection | Ip67 (Iec 60529-2013) |
| resolution | 8 Mp (5120 X 1440) |
| users host | Up To 32 Users, 3 User Levels: Administrator, Operator And User |
| illuminator | Up To 30 M White Supplement Light |
| web browser | Yes |
| focal length | 4 Mm |
| image sensor | 2 X 1/1.8 In Progressive Scan Cmos |
| sd card slot | Built-In Memory Card Slot, Support Micro Sd/Micro Sdhc/Micro Sdxc/Tf Card, Up To 256 Gb |
| camera weight | 2.4 Lb |
| day and night | 24/7 Color Imaging |
| mounting type | Wall Mount - Hth-473Zj-155, Pendant Mount - Hth-471Zj-155, Pole And Corner - P -Hth-275Zj, C -Hth-276Zj |
| shutter speed | 1/30 To 1/100000 Sec |
| video bitrate | 32 Kbps - 16 Mbps |
| certifications | Fcc: 47 Cfr Part 15, Subpart B, Ce-Emc: En 55032: 2015, En 61000-3-2: 2019, En 61000-3-3: 2013+A1: 2019, En 50130-4: 2011 +A1: 2014, Rcm: As/Nzs Cispr 32: 2015, Ic: Ices-003: Issue 7, Ul: Ul 62368-1, Cb: Iec 62368-1: 2014+A11 |
| depth of field | 3.6 M To Infinity |
|---|---|
| image settings | Saturation, Brightness, Contrast, Sharpness Are Adjustable By Client Software Or Web Browser |
| outdoor indoor | Outdoor |
| ai capabilities | Basic Event - Motion Detection (Support Alarm Triggering By Specified Target Types (Human And Vehicle), Alarm Input And Output, Flashing Alarm Light Output, Audible Alarm Output, Exception, Smart Event - Line Crossing Detection, Intrusion Detection |
| network storage | Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr) |
| angle adjustment | -30 To 30 Deg Pan, -75 To 75 Deg Tilt |
| bit rate control | Cbr/Vbr |
| built in speaker | Max. Power Consumption - 1.2 W, Max Sound Pressure - 10 Cm - 95 Db |
| general function | Anti-Flicker, Heartbeat, Password Reset Via E-Mail, Password Protection, One-Key Reset |
| camera dimensions | 6.1 X 6.1 In |
| image enhancement | Blc, Hlc, 3D Dnr |
| power consumption | 10.5 W Maximum |
| ethernet interface | (1) Rj45 10 M/100 M Self-Adaptive |
| wide dynamic range | 130 Db |
| built in microphone | Yes |
| day and night switch | Day, Night, Auto, Schedule |
| nightvision color bw | Color - 0.0005 Lux @ (F1.0, Agc On), B/W - 0 Lux With White Light |
| angular field of view | (H): 180 Deg, (V): 44 Deg |
| signal to noise ratio | >52 Db |
| maximum aperture ratio | F1.0 |
| simultaneous live view | Up To 6 Channels |
| video compression type | Main Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg |
| region of interest roi | 1 Fixed Region For Main Stream And Sub-Stream |
| environment noise filtering | Supported |
| scalable video coding svc | H.264 And H.265 Encoding |
| environmental operating humidity | 95% Or Less Rh (Non-Condensing) |
| application programming interface | Open Network Video Interface (Profile S, Profile G, Profile T), Isapi, Sdk, Isup |
| environmental operating temperature | -30 To 60 Deg C (-22 To 140 Deg F) |
Guides & Spec Sheets
HNC348G2P-XDLUSL.pdfBy Hunt CCTV
