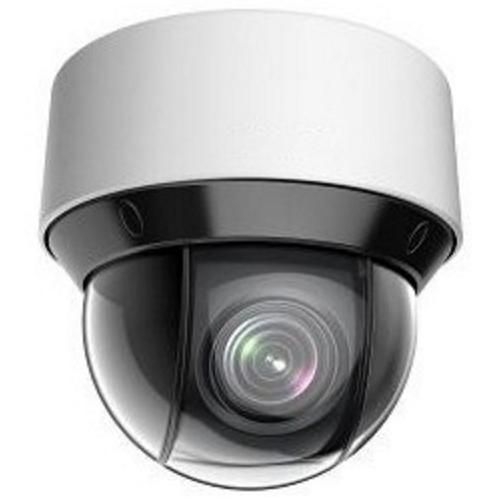

Hunt CCTV - Camera IP PTZ 4MP 25X Optical Zoom
SKU: HNP1A24-IR/25X
MFR SKU: HNP1A24-IR/25X
By: Hunt CCTV
Share
KEY FEATURES
- 1/2.5 in Progressive Scan CMOS
- 4MP Full HD resolution
- 25X Optical zoom, 16X digital zoom
- Up to 150ft IR distance
- Day/Night, D WDR, 3D DNR
- 3D intelligent positioning
- PoE+ / 12VDC power supply
- Compact-sized design
- Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
In stock
Retail price:
$562.51
1
Customers also bought:
Essential Accessories

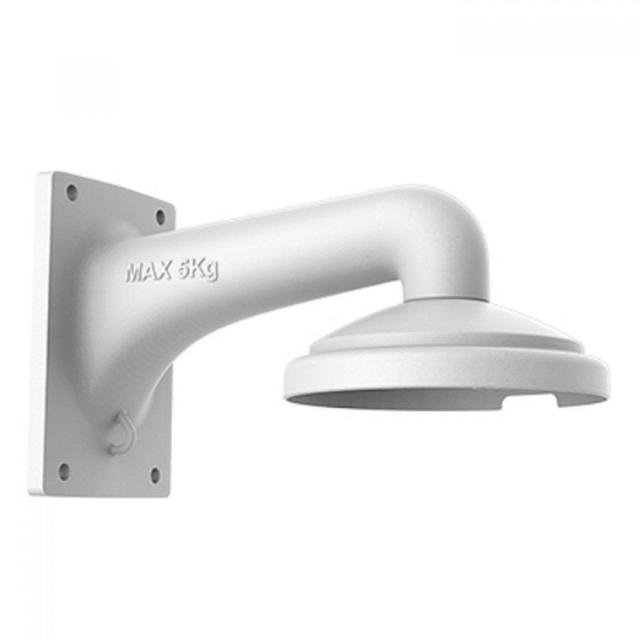

Hunt CCTV - WALLMOUNT BRACKET FOR NP1A14-IR PTZ CAM
MFR SKU: HTH-605ZJ
SKU: HTH-605ZJ
$44.29
Specifications
| ip | Ipv4, Ipv6 |
|---|---|
| poe | Yes (802.3Af) |
| body | Dome |
| lens | 4.8-120Mm |
| type | Tracking Ptz |
| zoom | 16X Digital |
| alarm | (2) Input, (2) Output |
| audio | 1 Input/1 Output |
| color | White |
| focus | Auto/Semiautomatic/Manual |
| video | 60 Hz - 30 Fps (2560 X 1440, 1920 X 1080, 1280 X 960, 1280 X 720) |
| security | User Authentication (Id And Pw), Host Authentication (Mac Address), Ip Address Filtering |
| protocols | Ipv4/Ipv6, Http, Https, 802.1X, Qos, Ftp, Smtp, Upnp, Snmp, Dns, Ddns, Ntp, Rtsp, Rtp, Tcp, Udp, Igmp, Icmp, Dhcp, Pppoe |
| protection | Ip66 (Outdoor Model); Tvs 4000V Lightning Protection, Surge Protection And Voltage Transient Protection |
| resolution | 4 Mp (2560 X 1440) |
| zoom speed | Approx. 3.2 Sec (Optical Wide-Tele) |
| illuminator | Up To 150 Ft |
| park action | Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Dome Reboot, Dome Adjust, Aux Output |
| focal length | 4.8-120 Mm, 25X |
| image sensor | 1/2.8 In Progressive Scan Cmos |
| power supply | 12 Vdc |
| privacy mask | 8 Programmable |
| sd card slot | Built-In Memory Card Slot, Micro Sd Card Slot, Up To 128 Gb |
| camera weight | 5.4 Lb |
|---|---|
| day and night | Ir Cut Filter |
| mounting type | Wall Mount - Hth-605Zj, Recess Mount - Hth-671Zj-Sd11, Pole Mount - Hth-275Zj, Corner Mount - Hth-276Zj |
| preset patrol | 8 Patrols, Up To 32 Presets For Each Patrol |
| shutter speed | 1/1 To 1/30000 Sec |
| white balance | Auto/Manual/Atw/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
| outdoor indoor | Indoor/Outdoor |
| power off memory | Supported |
| camera dimensions | 6.67 X 6.34 In |
| number of presets | 300 |
| power consumption | 18 W Maximum |
| ethernet interface | Rj45 (10/100 Base-T) |
| wide dynamic range | True Wdr |
| day and night switch | Auto, Manual |
| nightvision color bw | Color - 0.005 Lux @ (F1.6, Agc On), B/W - 0.001 Lux@ (F1.6, Agc On), B/W - 0 Lux With Ir |
| angular field of view | 57.6-2.5 Deg |
| maximum aperture ratio | F1.6 - F3.5 |
| simultaneous live view | Up To 6 Channels |
| video compression type | Main Stream - H.265+/H.265/H.264+/H.264, Sub-Stream - H.265/H.264/Mjpeg |
| scalable video coding svc | H.264 And H.265 Encoding |
| environmental operating humidity | 95% Or Less Rh (Non-Condensing) |
| environmental operating temperature | -30 To 65 Deg C (-22 To 149 Deg F) |
Guides & Spec Sheets
HNP1A14-IR-25X.pdfBy Hunt CCTV
