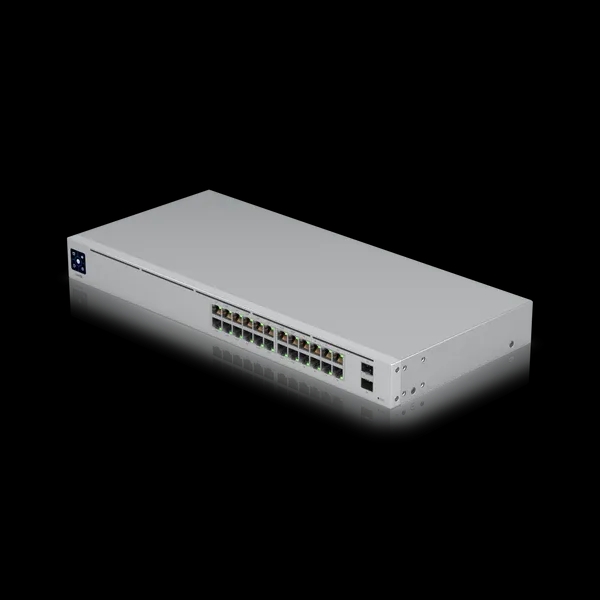

Ubiquiti - Switch 24 Ports 16 Gbe Poe+ Ports, 8 Gbe Ports 2 1g Sfp Ports 95w Total Power Silent Cooling

Ubiquiti - Switch 24 Ports 16 GbE PoE+ Ports, 8 GbE Ports 2 1G SFP Ports 95W Total Power Silent Cooling

SKU: USW-24-POE

MFR SKU: USW-24-POE

By: Ubiquiti

Ubiquiti - Switch 24 Ports 16 GbE PoE+ Ports, 8 GbE Ports 2 1G SFP Ports 95W Total Power Silent Cooling

KEY FEATURES

A 24-port, layer 2 PoE switch with a fanless cooling system
(24) GbE RJ45 ports
(2) 1G SFP ports
95 W total PoE availability
1.3 in LCM color touchscreen with AR switch management
Managed with the UniFi Network application: Version 7.2.94 and later
Layer 2 Features: IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN,
Switching performance - his UniFi switch offers a 38.69 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss.
The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic and monitor network statistics from one interface
Multi-site management - You may use a single instance of UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites.

+Quote

Essential Accessories

Ubiquiti - UICARE-USW-24-POE-D

SKU: UICUSW24POED

MFR SKU: UICARE-USW-24-POE-D

Specifications

type	Gigabit, Standard
color	Silver
series	Unifi®
dimensions	17.4 X 7.9 X 1.7 In
power supply	Ac/Dc, Internal, 120 W
poe interface	(16) Poe/Poe+ (Pins 1, 2+; 3, 6-)

product weight	3 Kg Without Mounting Bracket, 3.1 Kg With Mounting Bracket
humidity rating	10 To 90% (Non To Condensing)
power consumption	25 W
switching capacity	52 Gbps
temperature rating	-5 To 40 Deg C (23 To 104 Deg F)
standards approvals	Ce, Fcc, Ic Certified, Etsi300-019-1.4 Shock And Vibration

Guides & Spec Sheets

poe_ds.pdfBy Ubiquiti

Have Questions?

Get help from our experts

Our knowledgeable team is ready to answer any questions you may have and offer professional solutions tailored to your specific requirements.
