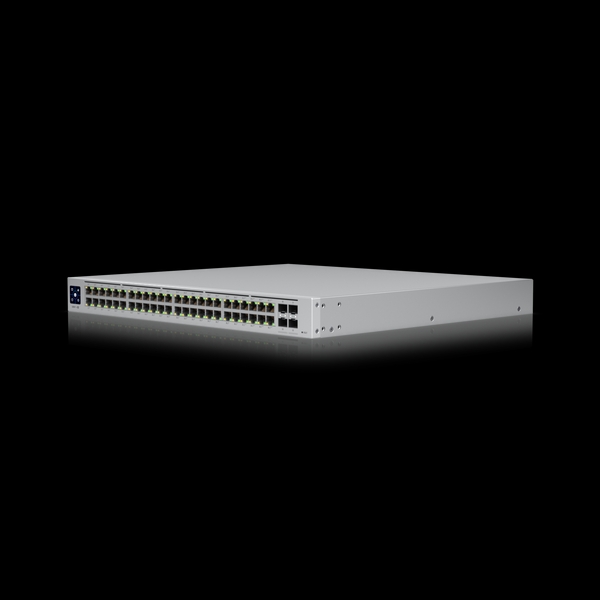

Ubiquiti - Switch Pro 48 Poe 40 Gbe Poe+ Ports, 8 Gbe Poe++ Ports, 4 10g Sfp+ Ports, 1 Usp-rps Dc Input 600watt

KEY FEATURES

A 48-port, layer 3 PoE switch
(40) GbE, PoE+ RJ45 ports
(8) GbE, PoE++ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input for power redundancy
600 W total PoE availability. Redundant power - The UniFi Pro PoE Switch supports has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails
Managed with the UniFi Network application: Version 5.10.5 and later. UniFi network controller - The UniFi Network Controller can provision UniFi devices,
Layer 2: IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring,
Layer 3: DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch,
Switching performance - The second-generation UniFi switch offers a 130.94 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss.
Layer 3 - The UniFi Pro PoE Switch features Layer 3 protocol capabilities, such as inter-VLAN routing, static routing and DHCP server functionality
SFP+ fiber connectivity - Connect high-speed network storage or set up a long-distance uplink using the 10 Gb/s SFP+ ports

+Quote

type	Professional
color	Silver
series	Unifi®
dimensions	17.4 X 15.7 X 1.7 In
power supply	Ac/Dc, Internal, 660 W
poe interface	(40) Poe/Poe+ (Pins 1, 2+; 3, 6-), (8) 60W Poe++; Poe/Poe+ (Pins 1, 2+; 3, 6-), Poe++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

product weight	6.2 Kg Without Mounting Bracket, 6.3 Kg With Mounting Bracket
humidity rating	10 To 90% (Non To Condensing)
power consumption	60 W (Excluding Poe Output)
switching capacity	176 Gbps
temperature rating	-5 To 40 Deg C (23 To 104 Deg F)
standards approvals	Ce, Fcc, Ic Certified, Etsi300-019-1.4 Shock And Vibration
