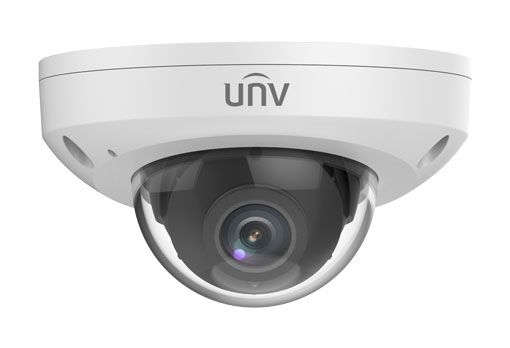

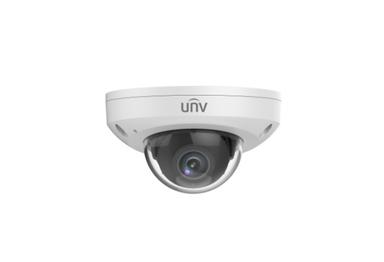

UNV - IPC314SB-ADF28K-I0 Camera Compact Dome 4MP NDAA

SKU: 314SBADF28KI0

MFR SKU: IPC314SB-ADF28K-I0

By: UNV

UNV - IPC314SB-ADF28K-I0 Camera Compact Dome 4MP NDAA

KEY FEATURES

High quality imaging with 4MP, 1/3 in CMOS sensor
4MP (2688*1520) @ 30/25 fps; 4MP (2560*1440) @ 30/25 fps; 3MP (2304*1296) @ 30/25 fps; 2MP (1920*1080) @ 30/25 fps;
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Light Hunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear imaging in strong light scene
Support 9:16 Corridor Mode. Support PoE power supply. Supports 256 G Micro SD card
Built-in Mic. 3-Axis
Smart IR, up to 30m (98ft) IR distance
IK10 vandal resistant. IP67 protection
Audio I/O: 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p]

+Quote

Specifications

ip	Ipv4
poe	Yes (802.3Af)
body	Mini Dome
lens	2.8Mm Fixed Focal
type	Hd Intelligent Lighthunter
alarm	No
audio	Audio Compression - G.711, Audio Bitrate - 64 Kbps, Two-Way Audio - Supported, Audio Suppression - Supported, Audio Sampling Rate - 8Khz
color	White
defog	Digital Defog
video	Main Stream: 4 Mp (2688 X 1520), Ma X 30 Fps, 4 Mp (2560 X 1440), Ma X 30 Fps, 3 Mp (2304 X 1296), Ma X 30 Fps, 2 Mp (1920 X 1080), Ma X 30 Fps, Sub Stream: 720P (1280 X 720), Ma X 30 Fps, D1 (720 X 576), Ma X 30 Fps, 640 X 360
client	Ez Station, Ezview, Ezlive
series	Prime
coverage	Detect - 63 M, Observe - 25.2 M, Recognize - 12.6 M, Identify - 6.3 M
material	Metal
security	Password Protection, Strong Password, Https Encryption, Export Operation Logs, Basic And Digest Authentication For Rtsp, Digest Authentication For Http, Tls 1.2, Wsse And Digest Authentication For Onvif
iris type	Fixed
protocols	Ipv4, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Pppoe, Rtp, Rtsp, Rtcp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, 802.1X, Snmp, Qos, Rtmp, Ssh, Ssl/Tls
reset key	No
protection	Ip67 (Iec 60529:1989+Amd1:1999+Amd2:2013), Ik10 (Iec 62262:2002)
resolution	4 Mp (2688 X 1520)
users host	Up To 32 Users. 3 User Levels: Administrator, Common And Operator
illuminator	Up To 30 M (98 Ft) Ir
web browser	Plug-In Required Live View - Ie9+, Chrome 41 And Below, Firefox 52 And Below, Plug-In Free Live View - Chrome 57.0+, Firefox 58.0+, Edge 16+
focal length	2.8 Mm
image sensor	1/3 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 5.5 Mm Dia Coaxial Power Plug
privacy mask	Up To 4 Areas
sd card slot	Micro Sd Slot, Up To 256 Gb
shutter mode	Auto, Manual
video output	No

camera weight	0.82 Lb
day and night	Ir Cut Filter With Auto Switch (Icr)
ir wavelength	850 Nm
shutter speed	1 To 1/100000 Sec
video bitrate	128 Kbps - 16 Mbps
white balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
certifications	Ce-Emc (En 55032: 2015+A1: 2020, En 61000-3-3: 2013+A1: 2019, En Iec 61000-3-2: 2019+A1: 2021, En 55035: 2017+A11: 2020), Fcc (Fcc Cfr 47 Part15 B, Ansi C63.4-2014), Ce Lvd (En 62368-1: 2014+A11: 2017), Cb (Iec 62368-1: 2014), Ul (Ul 62368-1
outdoor indoor	Outdoor
ai capabilities	Basic Detection - Motion Detection, Tampering Alarm, Audio Detection
network storage	Nas (Nfs), Auto Network Replenishment (Anr)
angle adjustment	0-90 Deg Pan, 0-68 Deg Tilt, 0-360 Deg Rotate
built in speaker	No
general function	Watermark, Ip Address Filtering, Access Policy, Arp Protection, Rtsp Authentication, User Authentication
surge protection	4 Kv
camera dimensions	4.3 X 2.4 In
image enhancement	BLC
power consumption	6 W Maximum
ethernet interface	(1) Rj45 10 M/100 M Base-Tx
wide dynamic range	120 Db
built in microphone	Supported
nightvision color bw	Color - 0.002 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir
angular field of view	(H): 101.1 Deg, (V): 55.3 Deg, (O): 111.1 Deg
signal to noise ratio	>56 Db
maximum aperture ratio	F1.6
video compression type	Ultra 265/H.265/H.264/Mjpeg
region of interest roi	Up To 8 Areas
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Api, Sdk
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)
