UNV - Wire Box For UNV Fixed Dome/Turret Camera
SKU: TR-JB03-G-IN
MFR SKU: TR-JB03-G-IN
UNV - Pole mount(Wall mount not included)
SKU: TR-UP06-IN
MFR SKU: TR-UP06-IN
UNV - Wall mount
SKU: TR-WM03-D-IN
MFR SKU: TR-WM03-D-IN
UNV - TR-UC08-A-IN PTZ Corner Mount
SKU: TR-UC08-A-IN
MFR SKU: TR-UC08-A-IN
UNV - TR-JB07/WM03-G-IN Wall mount with junction box
SKU: TRJB07/WM03GIN
MFR SKU: TR-JB07/WM03-G-IN
| ip | Ipv4 |
|---|---|
| poe | Yes (802.3Af) |
| body | Eyeball |
| lens | 2.8Mm Fixed Focal |
| type | Hd |
| audio | Audio Compression - G.711, Audio Suppression - Supported, Audio Sampling Rate - 8Khz |
| color | White |
| video | Main Stream: 4 Mp (2688 X 1520), Ma X 25 Fps, 4 Mp (2560 X 1440), Ma X 25 Fps, 3 Mp (2304 X 1296), Ma X 30 Fps, 1080P (1920 X 1080), Ma X 30 Fps, Sub Stream: 720P (1280 X 720), Ma X 30 Fps, D1 (720 X 576), Ma X 30 Fps, 640 X 360, Ma X 30 Fps |
| coverage | Detect - 63 M, Observe - 25.2 M, Recognize - 12.6 M, Identify - 6.3 M |
| material | Metal |
| iris type | Fixed |
| protocols | Ipv4, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Rtp, Rtsp, Rtcp, Rtmp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, Ssl, 802.1X, Snmp |
| reset key | No |
| protection | Ip67 |
| resolution | 4 Mp (2688 X 1520) |
| illuminator | Up To 30 M (98 Ft) Ir |
| web browser | Plug-In Required Live View - Ie9+, Chrome 41 And Below, Firefox 52 And Below, Plug-In Free Live View - Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| focal length | 2.8 Mm |
| image sensor | 1/3 In Progressive Scan Cmos |
| power supply | 12 Vdc +/-25% |
| privacy mask | Up To 4 Areas |
| sd card slot | Micro Sd Slot, Up To 256 Gb |
| shutter mode | Auto, Manual |
| camera weight | 0.95 Lb |
| day and night | Ir Cut Filter With Auto Switch (Icr) |
| ir wavelength | 850 Nm |
| shutter speed | 1 To 1/100000 Sec |
|---|---|
| video bitrate | 128 Kbps - 16 Mbps |
| white balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| certifications | Ul Listed, Ul60950-1 Fcc: Fcc Part 15 |
| outdoor indoor | Outdoor |
| ai capabilities | Behavior Detection - (Cross Line, Intrusion)Based On Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection |
| network storage | Nas (Nfs), Auto Network Replenishment (Anr) |
| angle adjustment | 0-360 Deg Pan, 0-80 Deg Tilt, 0-360 Deg Rotate |
| general function | Watermark, Ip Address Filtering, Access Policy, Arp Protection, Rtsp Authentication, User Authentication, Http Authentication |
| surge protection | 2 Kv |
| camera dimensions | 4.4 X 3.7 In |
| image enhancement | Blc, Hlc |
| power consumption | 6 W Maximum |
| ethernet interface | (1) Rj45 10 M/100 M Base-Tx |
| wide dynamic range | 120 Db |
| built in microphone | Supported |
| nightvision color bw | Color - 0.003 Lux @ ( F1.6, Agc On), B/W - 0 Lux With Ir |
| angular field of view | (H): 101.1 Deg, (V): 55.3 Deg, (O): 111.1 Deg |
| signal to noise ratio | >56 Db |
| maximum aperture ratio | F1.6 |
| video compression type | Ultra 265/H.265/H.264/Mjpeg |
| region of interest roi | Up To 8 Areas |
| scalable video coding svc | H.264 And H.265 Encoding |
| environmental operating humidity | 95% Or Less Rh (Non-Condensing) |
| application programming interface | Open Network Video Interface (Profile S, Profile G, Profile T), Api |
| environmental operating temperature | -30 To 60 Deg C (-22 To 140 Deg F) |

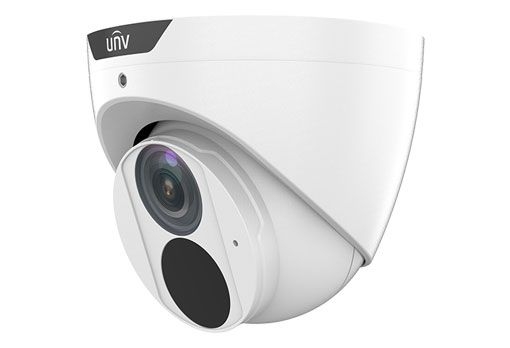

UNV - IPC3614SR3-ADF40K-G Turret Camera 4MP 4MM Built-in Mic
SKU: 3614SR3ADF40KG
By: unv
UNV - IPC3618SR3-ADF28KM-G Camera Turret 8MP IR 2.8MM
SKU: 3618SR3ADF28KM
By: unv

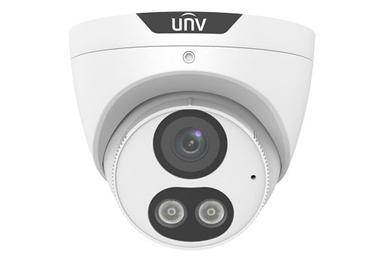

UNV - IPC3634SE-ADF28K-WL-I0 Camera Turret 4MP 2.8MM With Color Hunter Technology
SKU: 3634SEADF28KWLI
By: unv
UNV - IPC3614SB-ADF28KMC-I0 Camera Turret 4MP 2.8MM, With Active Deterrence
SKU: 3614SBADF28KMCI
By: unv
