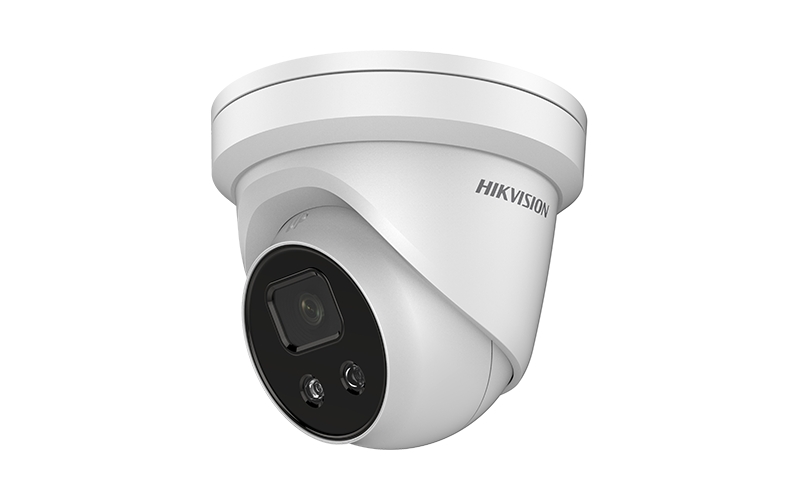

HIKVISION - Camera IP Turret 8MP 2.8MM IR H265+ AcuSense Technology
SKU: PCI-T18F2S/2.8
MFR SKU: PCI-T18F2S
By: Hikvision
Share
KEY FEATURES
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- Water and dust resistant (IP67)
- Network Storage - Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Audio - 1 Input (Line In)/1 Output (Line Out), Two-Core Terminal Block, Max Input Amplitude: 3.3 Vpp, Input Impedance: 4.7 KΩ/Output Impedance: 100 Ω, Interface Type: Non-Equilibrium
- Perimeter Protection - Line crossing detection, intrusion detection, region entrance detection, region exiting detection
In stock
Retail price:
$240.00
1
Specifications
| ip | Ipv4, Ipv6 |
|---|---|
| poe | Yes (802.3Af, Class 3) |
| body | Turret |
| lens | 2.8Mm Fixed Focal |
| type | Acusense |
| alarm | (1) Input, (1) Output (Max (1) 2 Vdc, 30 Ma) |
| audio | Audio Type - Mono Sound, Audio Compression - G.711Ulaw/G.711Alaw/G.722.1/G.726/Mp2L2/Pcm/Mp3/Aac, Audio Bit Rate - 64 Kbps (G.711Ulaw/G.711Alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 To 192 Kbps (Mp2L2)/8 To 320 Kbps (Mp3)/16 To 64 Kbps (Aac) |
| color | White |
| video | Main-Stream - 50 Hz: 25 Fps (3840 X 2160, 3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), 60 Hz: 24 Fps (3840 X 2160), 30 Fps (3200 X 1800, 2688 X 1520, 1920 X 1080, 1280 X 720), Sub-Stream - 50 Hz: 25 Fps (640 X 480, 640 X 360) |
| client | Ivms-4200, Hik-Connect, Hik-Central |
| series | Performance |
| coverage | Detect - 85 M, Observe - 33 M, Recognize - 17 M, Identify - 8 M |
| material | Metal |
| security | Password Protection, Complicated Password, Https Encryption, Ip Address Filter, Security Audit Log, Basic And Digest Authentication For Http/Https, Tls 1.1/1.2, Wsse And Digest Authentication For Open Network Video Interface |
| analytics | Motion Detection, Camera Sabotage/Tampering, Abandoned Object, Object Removal, Scene Change Detection, Audio Detection, Virtual-Line Crossing Detection, Intrusion Detection, Entering/Exiting |
| iris type | Fixed |
| protocols | Tcp/Ip, Icmp, Http, Https, Ftp, Dhcp, Dns, Ddns, Rtp, Rtsp, Ntp, Upnp, Smtp, Igmp, 802.1X, Qos, Ipv4, Ipv6, Udp, Bonjour, Ssl/Tls, Pppoe, Arp, Snmp, Isup |
| reset key | Yes |
| lens mount | M12 |
| protection | Ip67 (Iec 60529-2013) |
| resolution | 8 Mp (3840 X 2160) |
| users host | Up To 32 Users, 3 User Levels: Administrator, Operator And User |
| hdmi output | Yes |
| illuminator | Up To 40 M Ir Supplement Light |
| web browser | Plug-In Required Live View - Ie 10, Plug-In Free Live View - Chrome 57.0+/Firefox 52.0+, Local Service - Chrome 57.0+/Firefox 52.0+ |
| face capture | Supported |
| focal length | 2.8Mm |
| image sensor | 1/1.8 In Progressive Scan Cmos |
| power supply | 12 Vdc, Max. 100 Ma, 12 Vdc +/-25%, 0.48 A, 5.5 Mm Dia Coaxial Power Plug, Reverse Polarity Protection |
| sd card slot | Built-In Memory Card Slot, Micro Sd/Sdhc/Sdxc Slot, Up To 256 Gb |
| camera weight | 1.7 Lb |
| day and night | Ir Cut Filter |
| ir wavelength | 850 Nm |
| shutter speed | 1/30 - 1/100000 Sec |
|---|---|
| video bitrate | 32 Kbps - 16 Mbps |
| white balance | Yes |
| certifications | Fcc Sdoc (47 Cfr Part 15, Subpart B), Ic Voc (Ices-003: Issue 6, 2019) |
| image settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Adjustable By Client Software Or Web Browser |
| outdoor indoor | Outdoor |
| ai capabilities | Basic Event - Motion Detection (Human And Vehicle Targets Classification), Video Tampering Alarm, Exception, Smart Event - Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Audio Exception Detection |
| network storage | Nas (Nfs, Smb/Cifs), Auto Network Replenishment (Anr) |
| target cropping | Yes |
| angle adjustment | 0-360 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate |
| bit rate control | Cbr/Vbr |
| general function | Anti-Flicker, Heartbeat, Mirror, Privacy Mask, Flash Log, Password Reset Via E-Mail, Pixel Counter |
| webpage language | 33 Languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean |
| camera dimensions | 5.4 X 5 In |
| image enhancement | Blc, Hlc, 3D Dnr |
| power consumption | Maximum 5.8 W, Poe: Maximum 6.8 W, 36 V To 57 V, 0.19 A To 0.12 A |
| ethernet interface | (1) Rj45 10 M/100 M Self-Adaptive |
| wide dynamic range | 120 Db |
| day and night switch | Day, Night, Auto, Schedule |
| nightvision color bw | Color - 0.003 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir |
| angular field of view | (H): 111 Deg, (V): 59 Deg, (O): 131 Deg |
| signal to noise ratio | >52 Db |
| maximum aperture ratio | F1.6 |
| simultaneous live view | Up To 6 Channels |
| video compression type | Main-Stream - H.265/H.264/H.264+/H.265+, Sub-Stream - H.265/H.264/Mjpeg, Third Stream - H.265/H.264, Fourth Stream - H.265/H.264/Mjpeg, (Third Stream And Fourth Stream Are Supported Under Certain Settings) |
| image parameters switch | Yes |
| region of interest roi | 5 Fixed Region For Main-Stream And Sub-Stream |
| environment noise filtering | Supported |
| scalable video coding svc | H.264 And H.265 Encoding |
| environmental operating humidity | 95% Or Less Rh (Non-Condensing) |
| application programming interface | Open Network Video Interface (Profile S, Profile G, Profile T), Isapi, Sdk, Isup |
| environmental operating temperature | -30 To 60 Deg C (-22 To 140 Deg F) |
