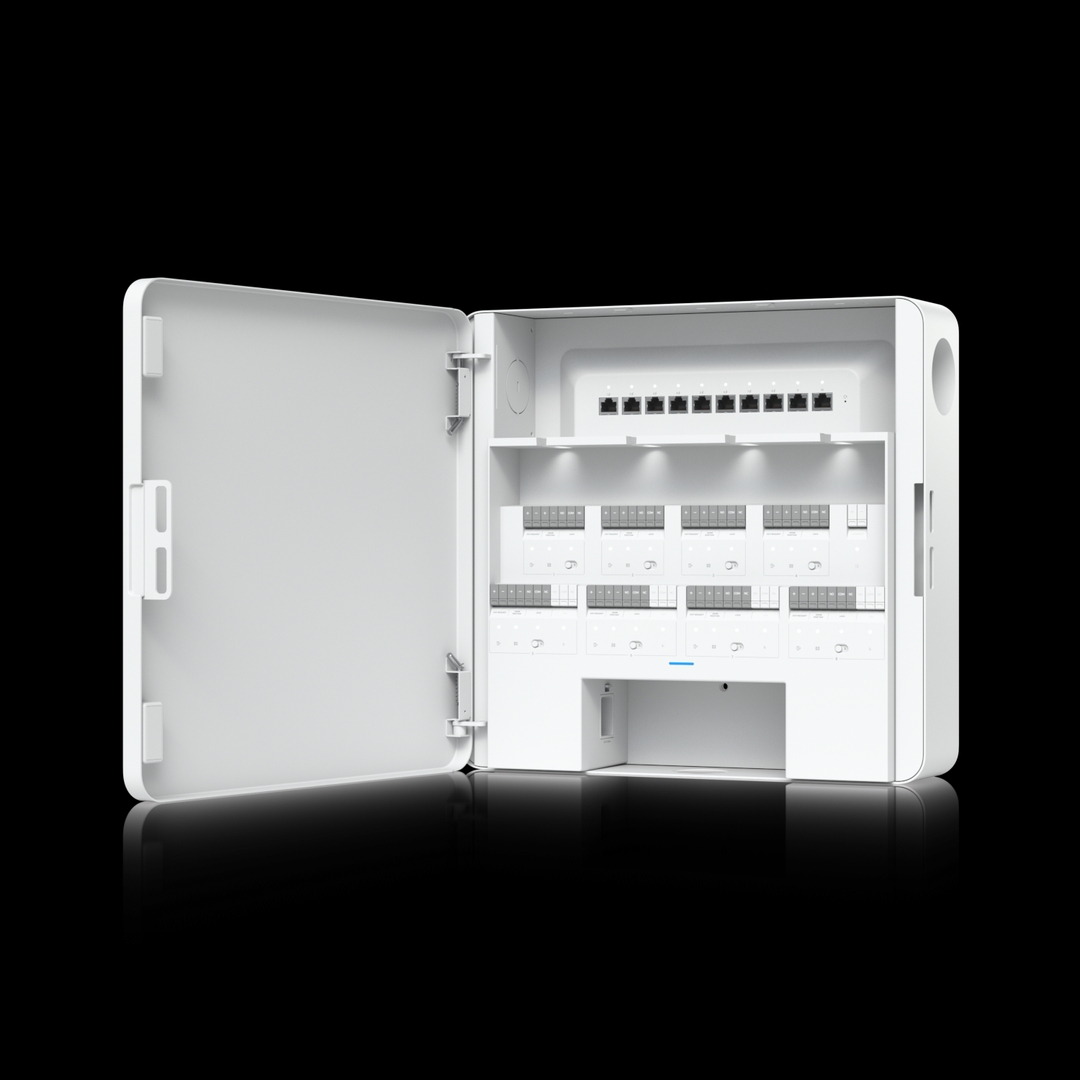

Ubiquiti - Unifi Access Hub 8 Door

Ubiquiti - UniFi Access Hub 8 Door

SKU: EAH-8

MFR SKU: EAH-8

By: Ubiquiti

KEY FEATURES

Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support
(8) Lock terminals (12V or Dry)
(8+8) Inputs for request-to-exit devices and door position sensors
(8) PoE ports for access readers
(4) AUX terminals for chimes, sirens or door openers
(1) Battery backup input (32–48V)
PoE Cabling Requirements - Cable 5e cabling is the minimum performance category recommended.
Ul 294 Statement - Compliance with IEEE 802.3 specifications was not verified as part of UL 294,

+Quote

Customers also bought:

USW-PRO-24-POEUbiquiti - Switch Pro 24 PoE 16 GbE PoE+ Ports, 8 GbE PoE++ Ports, 2 10G SFP Ports 1 USP-RPS DC input 400Watt

USW-PRO-48-POEUbiquiti - Switch Pro 48 PoE 40 GbE PoE+ Ports, 8 GbE poE++ Ports, 4 10G SFP+ Ports, 1 USP-RPS DC Input 600Watt

UA-G2-ProUbiquiti - UniFi Access indoor/outdoor reader w/touchscreen 2-way audio, camera

Essential Accessories

Ubiquiti - UICARE-EAH-8-D

SKU: UICEAH8D

MFR SKU: UICARE-EAH-8-D

Specifications

color	White
dimensions	15 X 14 X 4.1 In
power supply	Ac/Dc, Internal
poe interface	(8) Poe (Pins 1, 2+; 3, 6-)
product weight	9.1 Kg Device, 624 G Mount

humidity rating	5 To 95% (Non To Condensing)
power consumption	240 W
temperature rating	-32 To 104 Deg F
standards approvals	Ul 294, Can/Ulc-60839-11-1 Grade I, Ce, Fcc, Ic, Ul 294, Can/Ulc-60839-11-1
