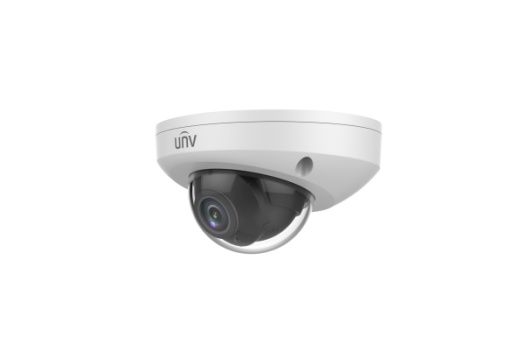

UNV - IPC318SR3-ADF28KM-G Camera Compact Dome 8MP 2.8mm NDAA

SKU: 318SR3-ADF28KMG

MFR SKU: IPC318SR3-ADF28KM-G

By: UNV

UNV - IPC318SR3-ADF28KM-G Camera Compact Dome 8MP 2.8mm NDAA

KEY FEATURES

High quality imaging with 8MP, 1/3 in CMOS sensor
8MP (3840*2160) @ 20 fps; 5MP (3072*1728) @ 30/25 fps; 4MP (2560*1440) @ 30/25 fps; 2MP (1920*1080) @ 30/25 fps
Ultra 265, H.265, H.264, MJPEG
Light Hunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear imaging in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IK10 vandal resistant. IP67 protection
Support PoE power supply
3-Axis. Audio I/O: 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p]

+Quote

Customers also bought:

3638SEADF2828KWUNV - IPC3638SE-ADF28K-WL-I0 Camera Turret 8MP 2.8MM With Color Hunter Technology

Essential Accessories

UNV - Wire Box For UNV Fixed Dome/Turret Camera

SKU: TR-JB03-G-IN

MFR SKU: TR-JB03-G-IN

UNV - Pole mount(Wall mount not included)

SKU: TR-UP06-IN

MFR SKU: TR-UP06-IN

UNV - Wall mount

SKU: TR-WM03-D-IN

MFR SKU: TR-WM03-D-IN

UNV - TR-JB07/WM03-G-IN Wall mount with junction box

SKU: TRJB07/WM03GIN

MFR SKU: TR-JB07/WM03-G-IN

UNV - Ceiling Bracket Pendant Unv

SKU: TR-CM24-IN

MFR SKU: TR-CM24-IN

Specifications

ip	Ipv4, Ipv6
poe	Yes (802.3Af)
body	Mini Dome
lens	2.8Mm Fixed Focal
type	Hd Intelligent Lighthunter
alarm	No
audio	Audio Compression - G.711U/G.711A, Audio Bitrate - 64 Kbps, Two-Way Audio - Supported, Audio Suppression - Supported, Audio Sampling Rate - 8Khz
color	White
defog	Digital Defog
video	Main Stream: 8 Mp (3840 X 2160), Ma X 20 Fps, 5 Mp (3072 X 1728), Ma X 30 Fps, 4 Mp (2560 X 1440), Ma X 30 Fps, 1080P (1920 X 1080), Ma X 30 Fps, Sub Stream: 720P (1280 X 720), Ma X 30 Fps, D1 (720 X 576), Ma X 30 Fps, 640 X 360, Ma X 30 Fps
client	Ez Station, Ezview, Ezlive
coverage	Detect - 63 M, Observe - 25.2 M, Recognize - 12.6 M, Identify - 6.3 M
material	Metal
security	Password Protection, Strong Password, Https Encryption, Export Operation Logs, Basic And Digest Authentication For Rtsp, Digest Authentication For Http, Tls 1.2, Wsse And Digest Authentication For Onvif
iris type	Fixed
protocols	Ipv4, Ipv6, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Pppoe, Rtp, Rtsp, Rtcp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, 802.1X, Snmp, Qos, Rtmp, Ssh, Ssl/Tls
reset key	No
protection	Ip67 (Iec 60529), Ik10 (Iec 62262)
resolution	8 Mp (3840 X 2160)
users host	Up To 32 Users. 3 User Levels: Administrator, Common And Operator
illuminator	Up To 30 M (98 Ft) Ir
web browser	Plug-In Required Live View - Ie 10 And Above, Chrome 45 And Above, Firefox 52 And Above, Edge 79 And Above, Plug-In Free Live View - Chrome 57.0 And Above, Firefox 58.0 And Above, Edge 16 And Above
focal length	2.8 Mm
image sensor	1/3 In Progressive Scan Cmos
power supply	12 Vdc +/-25%, 5.5 Mm Dia Coaxial Power Plug
privacy mask	Up To 4 Areas
sd card slot	Micro Sd Slot, Up To 256 Gb
shutter mode	Auto, Manual
video output	No
camera weight	0.82 Lb

day and night	Ir Cut Filter With Auto Switch (Icr)
ir wavelength	850 Nm
shutter speed	1 To 1/100000 Sec
video bitrate	128 Kbps - 16 Mbps
white balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
certifications	Ce-Emc (En 55032, En 61000-3-3, En Iec 61000-3-2, En 50130), Fcc (Fcc 47 Cfr Part15 B), Ce Lvd (En 62368-1), Cb (Iec 62368-1), Ul/Cul (Ul 62368-1, Can/Csa C22.2 No. 62368-1), Ce-Rohs (2011/65/Eu, (Eu)2015/863), Weee (2012/19/Eu)
outdoor indoor	Outdoor
ai capabilities	Basic Detection - Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
network storage	Nas (Nfs), Auto Network Replenishment (Anr)
angle adjustment	0-90 Deg Pan, 0-68 Deg Tilt, 0-360 Deg Rotate
built in speaker	No
general function	Watermark, Ip Address Filtering, Access Policy, Arp Protection, Rtsp Authentication, User Authentication
surge protection	4 Kv
camera dimensions	4.3 X 2.4 In
image enhancement	BLC
power consumption	Tbd Maximum
ethernet interface	(1) Rj45 10 M/100 M Base-Tx
wide dynamic range	120 Db
built in microphone	Supported
nightvision color bw	Color - 0.002 Lux @ (F1.6, Agc On), B/W - 0 Lux With Ir
angular field of view	(H): 101.1 Deg, (V): 55.3 Deg, (O): 111.1 Deg
signal to noise ratio	>56 Db
maximum aperture ratio	F1.6
video compression type	Ultra 265/H.265/H.264/Mjpeg
region of interest roi	Up To 8 Areas
scalable video coding svc	H.264 And H.265 Encoding
environmental operating humidity	95% Or Less Rh (Non-Condensing)
application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Api, Sdk
environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)
