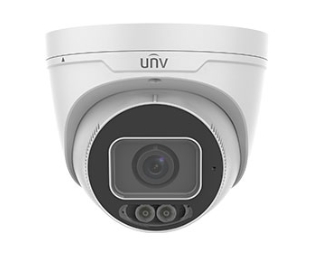

UNV - IPC3638SE-ADF28K-WL-I0 Camera Turret 8MP 2.8MM With Color Hunter Technology

SKU: 3638SEADF2828KW

MFR SKU: IPC3638SE-ADF28K-WL-I0

By: UNV

UNV - IPC3638SE-ADF28K-WL-I0 Camera Turret 8MP 2.8MM With Color Hunter Technology

KEY FEATURES

High quality image with 8MP, 1/1.8 in CMOS sensor
8MP (3840*2160) @ 30(AI off)/25 fps; 5.3MP (3072*1728) @ 30/25 fps; 3.6MP (2560*1440) @ 30/25 fps; 2MP (1920*1080) @ 30/25 fps; 720P (1280*720), Max 30/25 fps;
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Intelligent People Flow Counting and Crowd Density Monitoring
Color hunter technology ensures 24-hour full-color images
F1.0 Super aperture. IK10 vandal resistant and IP67 protection
120dB true WDR technology enables clear image in strong light scene
Support 9:16 corridor Mode. Supports 256 G micro SD card
Alarm:1 in/1 out, Audio: 1 in/1 out
Intelligent: Smart intrusion prevention - Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection,

Price

$192.40

+Quote

Customers also bought:

TR-JB03-H-IN

UNV - Junction box

$14.3

318SR3-ADF28KMG

UNV - IPC318SR3-ADF28KM-G Camera Compact Dome 8MP 2.8mm NDAA

$159.9

Essential Accessories

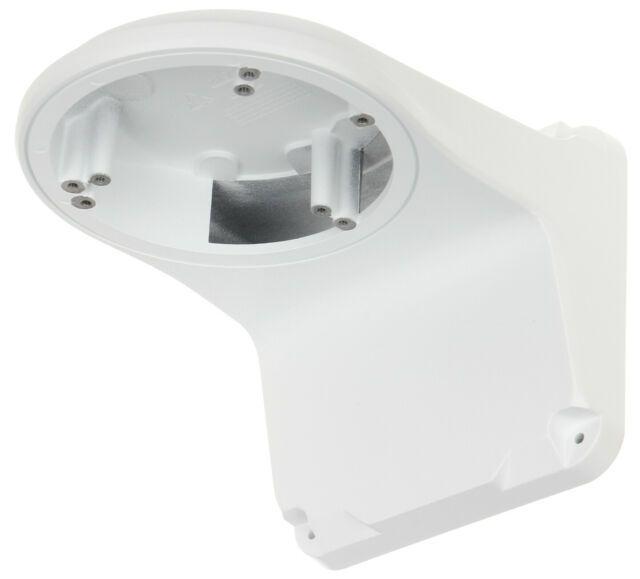

UNV - Wallmount Bracket For UNV Fixed Dome

$20.23

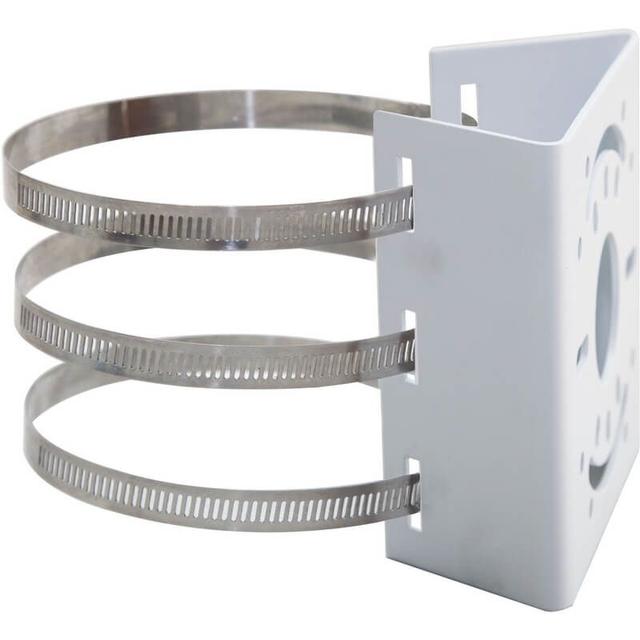

UNV - Pole mount(Wall mount not included)

$14.67

UNV - Junction box

$13.1

UNV - Wall mount with junction box (Extra back outlet for cable)

$33.33

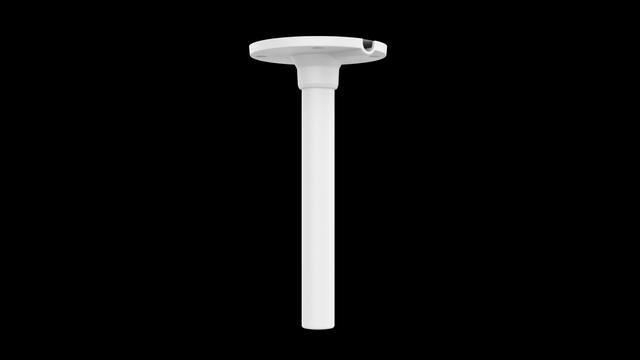

UNV - Ceiling Bracket Pendant Unv

$9.33

Specifications

	ip	Ipv4, Ipv6		poe	Yes (802.3Af)		body	Eyeball		lens	2.8Mm Fixed Focal		type	Hd Intelligent		alarm	(1) Input, (1) Output		audio	Audio Compression - G.711, Audio Bitrate - 64 Kbps, Two-Way Audio - Supported, Audio Suppression - Supported, Audio Sampling Rate - 8Khz		color	White		defog	Digital Defog		video	Main Stream: 8 Mp (3840 X 2160), Ma X 30 Fps, 5.3 Mp (3072 X 1728), Ma X 30 Fps, 3.6 Mp (2560 X 1440), Ma X 30 Fps, 1080P (1920 X 1080), Ma X 30 Fps, 720P (1280 X 720), Ma X 30 Fps, Sub Stream: 1080P (1920 X 1080), Ma X 30 Fps, 720P (1280 X 720)		client	Ez Station, Ezview, Ezlive		series	Prime		coverage	Detect - 63 M, Observe - 25.2 M, Recognize - 12.6 M, Identify - 6.3 M		material	Metal		security	Password Protection, Strong Password, Https Encryption, Export Operation Logs, Basic And Digest Authentication For Rtsp, Digest Authentication For Http, Tls 1.2, Wsse And Digest Authentication For Onvif		iris type	Fixed		protocols	Ipv4, Ipv6, Igmp, Icmp, Arp, Tcp, Udp, Dhcp, Pppoe, Rtp, Rtsp, Rtcp, Dns, Ddns, Ntp, Ftp, Upnp, Http, Https, Smtp, 802.1X, Snmp, Qos, Rtmp, Ssl/Tls, Ssh		reset key	Supported		protection	Ip67 (Iec 60529:1989+Amd1:1999+Amd2:2013), Ik10 (Iec 62262:2002)		resolution	8 Mp (3840 X 2160)		users host	Up To 32 Users. 3 User Levels: Administrator, Common And Operator		illuminator	Up To 30 M (98 Ft) Led		web browser	Plug-In Required Live View - Ie 10 And Above, Chrome 45 And Above, Firefox 52 And Above, Edge 79 And Above, Plug-In Free Live View - Chrome 57.0 And Above, Firefox 58.0 And Above, Edge 16 And Above		focal length	2.8 Mm		image sensor	1/1.8 In Progressive Scan Cmos		power supply	12 Vdc +/-25%, 5.5 Mm Dia Coaxial Power Plug		privacy mask	Up To 4 Areas		sd card slot	Micro Sd Slot, Up To 256 Gb		shutter mode	Auto, Manual		video output	No

	camera weight	1.41 Lb		ir wavelength	850 Nm		shutter speed	1 To 1/100000 Sec		video bitrate	128 Kbps - 16 Mbps		white balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2		certifications	Ce-Emc (En 55032: 2015+A1: 2020, En 61000-3-3: 2013+A1: 2019, En Iec 61000-3-2: 2019+A1: 2021, En 55035: 2017+A11: 2020), Fcc (Fcc Cfr 47 Part15 B, Ansi C63.4-2014), Ce Lvd (En 62368-1: 2014+A11: 2017), Cb (Iec 62368-1: 2014), Ul (Ul 62368-1, 2Nd Ed.		outdoor indoor	Outdoor		ai capabilities	Basic Detection - Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection		network storage	Nas (Nfs), Auto Network Replenishment (Anr)		angle adjustment	0-360 Deg Pan, 0-72 Deg Tilt, 0-360 Deg Rotate		built in speaker	No		general function	Watermark, Ip Address Filtering, Alarm Input, Alarm Output, Access Policy, Arp Protection, Rtsp Authentication, User Authentication		surge protection	4 Kv		camera dimensions	5.1 X 4.3 In		image enhancement	Blc, Hlc		power consumption	11 W Maximum		ethernet interface	(1) Rj45 10 M/100 M Base-Tx		wide dynamic range	120 Db		built in microphone	Supported		nightvision color bw	Color - 0.0005 Lux @ (F1.0, Agc On)		angular field of view	(H): 110.15 Deg, (V): 59.06 Deg, (O): 143.19 Deg		signal to noise ratio	>56 Db		maximum aperture ratio	F1.0		video compression type	Ultra 265/H.265/H.264/Mjpeg		region of interest roi	Up To 8 Areas		scalable video coding svc	H.264 And H.265 Encoding		environmental operating humidity	95% Or Less Rh (Non-Condensing)		application programming interface	Open Network Video Interface (Profile S, Profile G, Profile T), Api, Sdk		environmental operating temperature	-30 To 60 Deg C (-22 To 140 Deg F)

Guides & Spec Sheets

UNV ?Datasheet?IPC3638SE-ADF28(40)K-WL-I0 4K HD Intelligent ColorHunter Fixed Eyeball Network Camera datasheet V1.4-EN.pdf

By UNV

$156.00

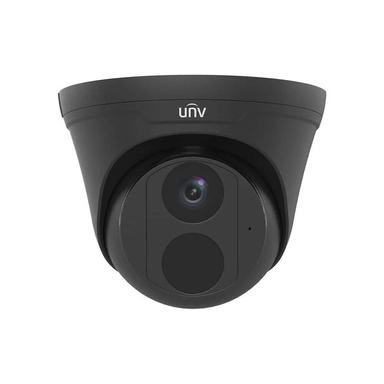

UNV - IPC3638SE-ADF28K-WL-BK Camera Turret 8MP 2.8MM With Color Hunter BLACK

SKU: 3638SEADF28K-BK

By: unv

Price

$192.40

UNV - IPC3634SE-ADF28K-WL-I0 Camera Turret 4MP 2.8MM With Color Hunter Technology

SKU: 3634SEADF28KWLI

By: unv

Price

$156.00

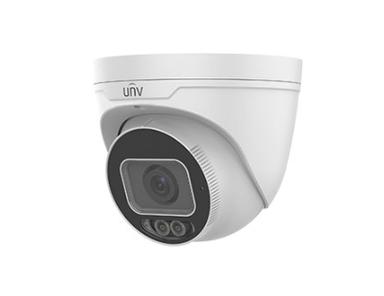

UNV - IPC3638SE-ADF28(40)K-WL-I0 Camera Turret 8MP 4MM With Color Hunter Technology

SKU: 3638SEADF40KWLI

By: unv

Price

$192.40
